Product Details

Description

Features:

· Active Gate Discharge Circuitry
· Optical Isolation
· High Isolation Voltage
· Dual Independent Channels
· Wide Operating Temperature Range

Application

· Gate Drive Power MOSFETS
· Solid State Relays
· Process Controls
· Switching Power Supplies
· DC Motor Control

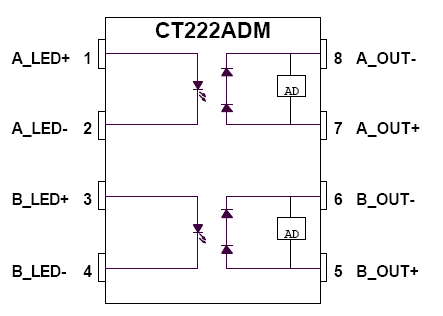

Pinout

Connection Diagram

Specifications

Parameter	Conditions	Ratings	Unit
Led Forward Current	Condition	50	mA
Led Forward Current	Steady State	75	mA
Led Reverse Voltage	Peak, 10% Duty Cycle	5	V
Output Voltage	Reverse Current = -10 ìA	18	V
Output Current	Open Circuit	75	ìA
Operating Temperature	Led Current = 50 mA	-55 to 125	°C
Storage Temperature		-55 to 125	°C
Isolation Voltage		1000	V

Description

The CT222ADM is an isolated dual photovoltaic MOSFET driver used when a high degree of electrical isolation is required.

CT222ADM can isolate the MOSFET from more sensitive control circuitry and enable the source and drain connections to reach any potential within the range of the isolation voltage. High photo efficiency produces fast turn on. A low off state impedance insures fast turn off and immunity from dv/dt when the MOSFET is in the off state.

The CT222ADM is packaged in an 8 pin hermetically sealed ceramic dip and is designed for high reliability applications.
