CT1999

Features:

• Performs the Complete Dual-Redundant Remote Terminal and Bus Controller Protocol Functions of MIL-STD-1553B
• Automatic Switchover to Superseding Input Commands
• MIL-PRF-38534 Compliant Circuits Available
• 750 mw Typical Power Consumption
• Small Size
• Available in Plug-in or Flatpack Configuration
• Compatible with all ACT Driver/Receiver Units
• 5V DC Operation
• Direct replacement for CT1602
• Full Military (-55°C to +125°C) Temperature Range


Pinout




Specifications

Parameter	Range	Units
Operating Free-air Temperature	-55°C to +125	°C
Storage Case Temperature	-65°C to +150	°C
Power Supply Voltage VCC	+7	Volts
Input Voltage	+7	Volts

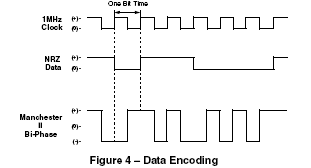

Description

The CT1999 design incorporates ASIC and five Octal Buffers that accomplish the dual redundant MIL-STD1553B Remote Terminal and/or Bus Controller Protocol Functions. Buffering has been added to the most commonly used output signals on the CT1999, minimizing external hardware requirements. The CT1999 connects directly to all ACT Driver/Receiver Units.
