CT0402M4G

VARISTOR 4VRMS 0402 SMD

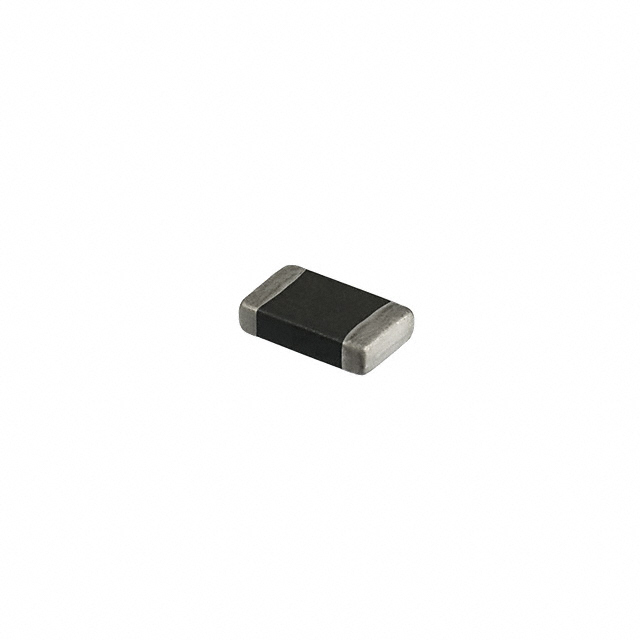

product image

CT0402M4G Picture
See larger image
SeekIC No. : 003005713 Detail

CT0402M4G: VARISTOR 4VRMS 0402 SMD

CT0402M4G Data Sheet

floor Price/Ceiling Price

US $ .05~.23 / Piece | Get Latest Price
Part Number:
CT0402M4G
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~5000
  • Unit Price
  • $.23
  • $.19
  • $.1
  • $.06
  • $.06
  • $.05
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CT Standard Logic Family : AS
Manufacturer: EPCOS Inc Varistor Voltage: 12V
Current-Surge: 25A Number of Circuits: 1
Maximum AC Volts: 4VAC Maximum DC Volts: 5.5VDC
Energy: 17J

Description

Number of Circuits: 1
Package / Case: 0402 (1005 Metric)
Varistor Voltage: 12V
Manufacturer: EPCOS Inc
Maximum DC Volts: 5.5VDC
Current-Surge: 25A
Series: CT Standard
Maximum AC Volts: 4VAC
Energy: 17J


Specifications

RMS voltage
DC voltage
Varistor voltage (@ 1 mA)
Clamping voltage (@ 1 A, typical)
Maximum clamping voltage (@ 1 A)
Maximum average power dissipation
Maximum surge current (8/20 s)
Maximum energy absorption (2 ms)
Capacitance (@ 1 kHz, 1 V, 25 °C, typical)
Response time
Operating temperature
Storage temperature (mounted parts)
Termination material
VRMS = 4 V
VDC = 5.5 V
VV = 8 up to 12 V
VC = 19 V
VC = 24 V
Pmax = 3 mW
Imax = 1 x 25 A
Emax = 1 x 17 mJ
C = 200 pF
< 0.5 ns
40 . +85 °C
40 . +125 °C
Ag/Ni/Sn
(thickness not specified, adjusted to fulfil wettability specification according toIEC 60068-2-58)



Description

The features of CT0402M4G are as followed:

CT = Chip with three-layer- termination (Ag/Ni/Sn)
0402 = Dimensions of the device 04 x 02 (length x width in 1/100 inch)
L = Tolerance of the varistor voltage (± 20%)
4 = Maximum operating voltage (RMS voltage)
G = Taped version (cardboard tape, 7" reel, 10000 pieces/reel)




Parameters:

Technical/Catalog InformationCT0402M4G
VendorEPCOS Inc
CategoryCircuit Protection
Maximum AC Volts4Vrms
Maximum DC Volts5.5VDC
Current-Surge25A
Package / Case0402 (1005 metric)
Varistor Voltage12V
Energy17J
Number of Circuits1 - Single
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CT0402M4G
CT0402M4G
495 3425 2 ND
49534252ND
495-3425-2
