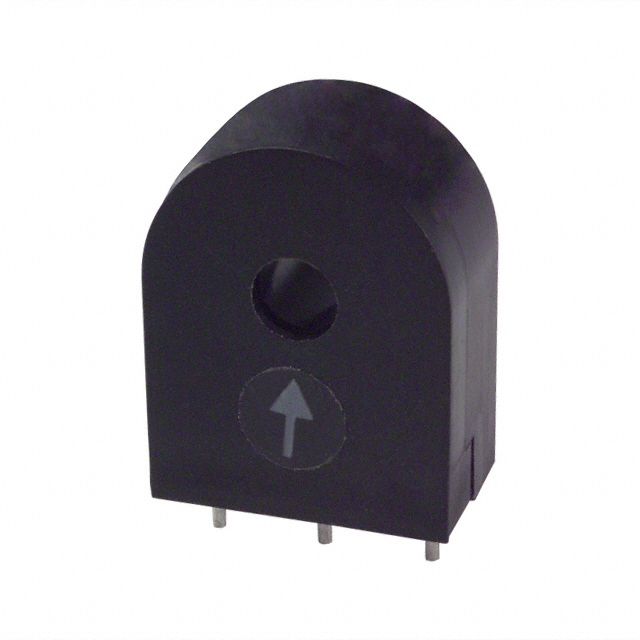

Current Transformers 3.5mH 35A SENSING CENTER TAPPED
CST306-1T: Current Transformers 3.5mH 35A SENSING CENTER TAPPED
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Length : | 27.3 mm | Width : | 10.16 mm |
Height : | 31.11 mm |
Technical/Catalog Information | CST306-1T |
Vendor | Triad Magnetics |
Category | Transformers |
Mounting Type | PCB |
Current Rating | 35A |
DC Resistance (DCR) | 0.340 Ohm Max |
Turns Ratio - Primary:Secondary | 1:50CT |
Transformer Type | Frequency 20-200kHz |
E.T. | 500V S |
Inductance | 3.5mH |
Lead Free Status | Contains Lead |
RoHS Status | RoHS Non-Compliant |
Other Names | CST306 1T CST3061T 237 1105 ND 2371105ND 237-1105 |
