Current Transformers 70mH 130A SENSING

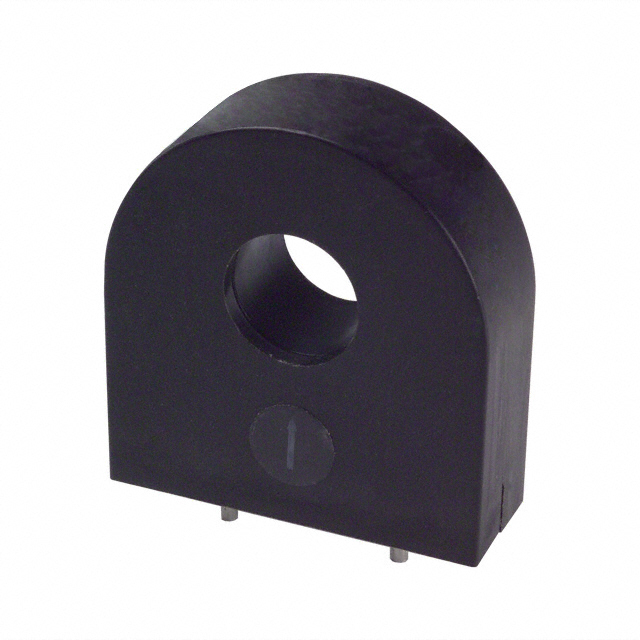

CST206-3A: Current Transformers 70mH 130A SENSING
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Length : | 27.3 mm | Width : | 10.16 mm |
Height : | 31.11 mm |
Technical/Catalog Information | CST206-3A |
Vendor | Triad Magnetics |
Category | Transformers |
Mounting Type | PCB |
Current Rating | 70A |
DC Resistance (DCR) | 12.4 Ohm Max |
Turns Ratio - Primary:Secondary | 1:300 |
Transformer Type | Frequency 20-200kHz |
E.T. | 6000V S |
Inductance | 130H |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | CST206 3A CST2063A 237 1100 ND 2371100ND 237-1100 |
