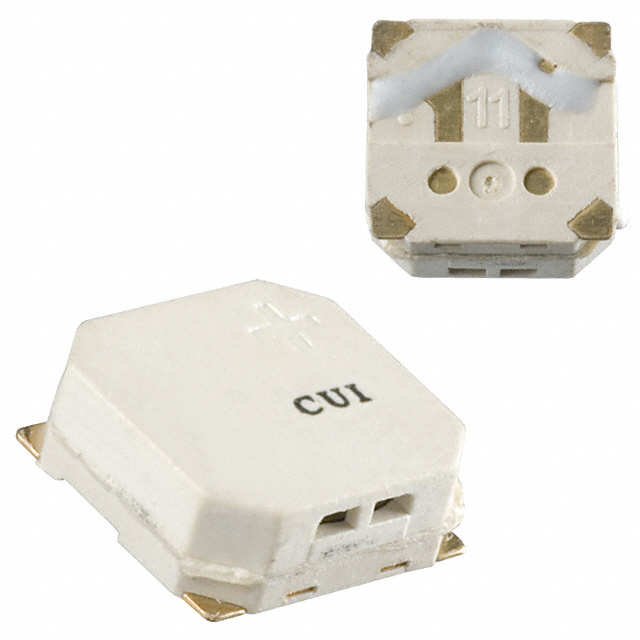

CSS-J4B20

Driver Circuitry: Transducer, Externally Driven
Input Type: zero-peak Signal
Operating Mode: Continuous
Washable: No
Packaging: Cut Tape (CT)Alternate Packaging
Manufacturer: CUI Inc
Technology: Magnetic
Mounting Type: Surface Mount
Termination: Solder Pads
Voltage Range: 3 ~ 5V
Frequency: 2.73kHz
Current - Supply: 80mA
Voltage - Rated: 3.6Vo-p
Series: CSS
Sound Pressure Level: 90dB @ 3.6V, 5cm
Size / Dimension: Square - 8.50mm L x 8.50mm W x 3.70mm H


Specifications

recommended circuits: click here

rated voltage: 3.6Vo-p

operating voltage: 3-5Vo-p

mean current: 80mA Max

coil resistance: 20Ω ±3

sound pressure level: 90dB Min

rated frequency: 2730 Hz

operating temperature: -30 to +70°C

storage temperature: -40 to +85°C

dimensions (LxWxH): 8.5 mm x 8.5 mm x 3.2 mm

weight: 0.7 grams

Parameters:

Technical/Catalog Information	CSS-J4B20
Vendor	CUI Inc (VA)
Category	Audio Products
Type	Magnetic Transducer, External Drive
Sound Pressure Level	90dB
Mounting Type	Surface Mount
Capacitance @ Frequency	-
Frequency	2.73kHz
Packaging	Cut Tape (CT)
Operating Mode	Continuous
Voltage Range	3~5Vo-p
Voltage - Rated	3.6Vo-p
Current Rating	80mA
Size / Dimension	Square - 8.5mm L x 8.5mm W x 3.2mm H
Termination	Solder Pads
Capacitance	*
Adjustment Type	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CSS J4B20 CSSJ4B20 102 1456 1 ND 10214561ND 102-1456-1
