CSS-I4B20

BUZZER MAGNETIC 8.5MM 3-5V SMD

product image

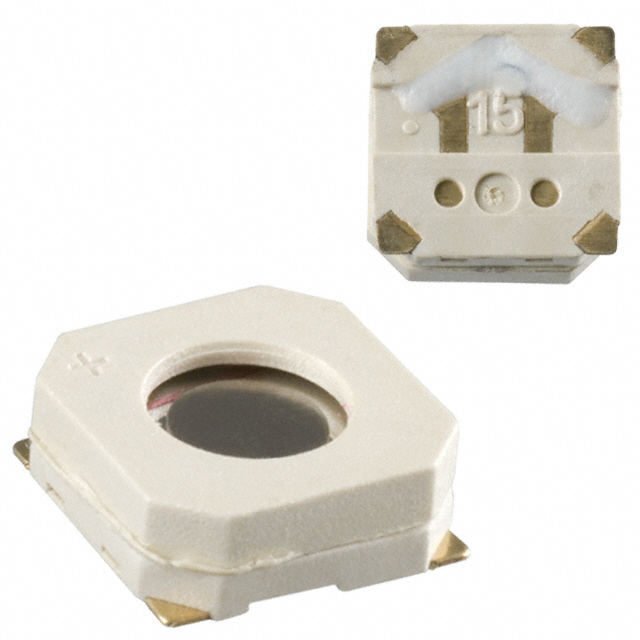

CSS-I4B20 Picture
See larger image
SeekIC No. : 002844754 Detail

CSS-I4B20: BUZZER MAGNETIC 8.5MM 3-5V SMD

CSS-I4B20 Data Sheet

floor Price/Ceiling Price

US $ 1.03~2.1 / Piece | Get Latest Price
Part Number:
CSS-I4B20
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $2.1
  • $1.74
  • $1.29
  • $1.03
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CSS Manufacturer: CUI Inc
Driver Circuitry: Transducer, Externally Driven Technology: Magnetic
Input Type: zero-peak Signal Voltage - Rated: 3.6Vo-p
Interface Type : I2C, UART Voltage Range: 3 ~ 5V
Frequency: 2.73kHz Operating Mode: Continuous
Sound Pressure Level: 85dB @ 3.6V, 5cm Current - Supply: 80mA
Washable: No Mounting Type: Surface Mount
Termination: Solder Pads Size / Dimension: Square - 8.50mm L x 8.50mm W x 3.30mm H

Description

Driver Circuitry: Transducer, Externally Driven
Input Type: zero-peak Signal
Operating Mode: Continuous
Washable: No
Packaging: Cut Tape (CT)Alternate Packaging
Manufacturer: CUI Inc
Technology: Magnetic
Mounting Type: Surface Mount
Termination: Solder Pads
Voltage Range: 3 ~ 5V
Frequency: 2.73kHz
Current - Supply: 80mA
Voltage - Rated: 3.6Vo-p
Series: CSS
Sound Pressure Level: 85dB @ 3.6V, 5cm
Size / Dimension: Square - 8.50mm L x 8.50mm W x 3.30mm H


Specifications

  • recommended circuits: click here
  • rated voltage: 3.6Vo-p
  • operating voltage: 3-5Vo-p
  • mean current: 80mA Max
  • coil resistance: 20Ω ±3
  • sound pressure level: 85dB Min
  • rated frequency: 2730 Hz
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +85°C
  • dimensions (LxWxH): 8.5 mm x 8.5 mm x 3.0 mm
  • weight: 0.6 grams



    • Parameters:

    Technical/Catalog InformationCSS-I4B20
    VendorCUI Inc
    CategoryAudio Products
    TypeMagnetic Transducer, External Drive
    Sound Pressure Level85dB
    Mounting TypeSurface Mount
    Capacitance @ Frequency-
    Frequency2.73kHz
    PackagingTape & Reel (TR)
    Operating ModeContinuous
    Voltage Range3~5Vo-p
    Voltage - Rated 3.6Vo-p
    Current Rating80mA
    Size / DimensionSquare - 8.5mm L x 8.5mm W x 3mm H
    TerminationSolder Pads
    Capacitance*
    Adjustment Type*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CSS I4B20
    CSSI4B20
    102 1455 2 ND
    10214552ND
    102-1455-2
