Product Details

Description



Pinout

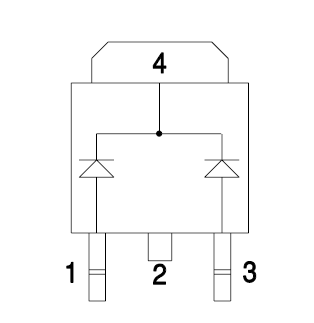

Connection Diagram


Specifications


SYMBOL
UNITS
Peak Repetitive Reverse Voltage
VRRM
40
V
DC Blocking Voltage
VR
40
V
Average Rectified Forward Current (TC=125oC) Per Diode
IO
3.0
A
Average Rectified Forward Current (TC=125oC) Per Device
IO
6.0
A
Peak Repetitive Forward Current (TC=125oC)
IFSM
6.0
A
Peak Forward Surge Current
IFSM
75
A
Peak Repetitive Reverse Surge Current (tp=2s)
IRRM
1.0
A
Operating and Storage
Junction Temperature
TJ, Tstg
-65 to +150
°C
Thermal Resistance
JC
6.0
°C/W



Description

The CENTRAL SEMICONDUCTOR CSHD6-40C, Silicon Schottky Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer and automotive applications.
