CS9210

Features:

·18-bit color support for digital pixel input
·65 MHz pixel clock operation supports up to 1024x768 panels
·Simultaneous CRT and DSTN display with up to 75 Hz refresh rate
·2X display refresh modes, up to 120 Hz
·Supports most SVGA DSTN panels and the VESA FPDI (Flat Panel Display Interface) Revision 1.0 Specification
·TFT panel support provided by use of one connector; allows a pass-through mode for the digital pixel input
·Programmable frame rate modulation (FRM), up to 32 levels
·Programmable dither, up to 16 levels
·Supports EDO memory, 16-bit interface
·Configuration via a serial programming interface
·Low-power, 3.3V operation
·144-pin LQFP (Low-profile Quad Flat Pack)


Pinout




Specifications

Parameter	Min	Max	Units	Comments
Operating Case Temperature		130	°C	Power Applied
Storage Temperature	40	150	°C	No Bias
Supply Voltage		4.0	V

Description

The CS9210 graphics companion is suitable for systems that use either the GXLV or GXm processor along with the CS5530 I/O companion; all members of the National Semiconductor^® Geode™ family of products.

The CS9210 converts the digital RGB output stream to the digital graphics input stream required by most industry standard DSTN color flat panel LCDs. It can drive all standard DSTN flat panels up to a 1024x768 resolution.

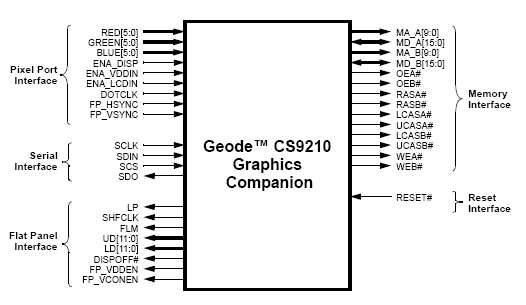

The system connection example shows how the CS9210 interfaces with the rest of the system components.
