CS8954

Features: • 8051 core, 12MHz operating frequency with single/double CPU clock option• 0.35um process• 3.3V power supply• 768-byte RAM• 64K-byte program Flash memory• Maximum 6 channels of PWM DAC• Watchdog timer with programmable interval• Single/dou...

product image

CS8954 Picture
See larger image
SeekIC No. : 004316799 Detail

CS8954: Features: • 8051 core, 12MHz operating frequency with single/double CPU clock option• 0.35um process• 3.3V power supply• 768-byte RAM• 64K-byte program Flash memoryR...

CS8954 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS8954
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8051 core, 12MHz operating frequency with single/double CPU clock option
• 0.35um process
• 3.3V power supply
• 768-byte RAM
• 64K-byte program Flash memory
• Maximum 6 channels of PWM DAC
• Watchdog timer with programmable interval
• Single/double frequency clock output
• Hardware In system programming (ISP) without boot code
• Two external interrupts
• Maximum 4 channels of 6-bit ADC
• Flash-ROM code protection selection
• 40-pin PDIP, 44-pin PLCC or PQFP package


Pinout

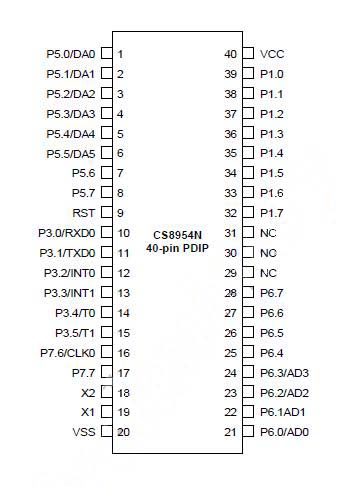

Connection Diagram


Specifications

Name
Symbol
Range
Unit
Maximum Supply Voltage
VDD
-0.3 to +3.6
V
Maximum Input Voltage
(HSYNC, VSYNC & open-drain pins)
Vin1
-0.3 to 3.3+0.3
V
Maximum Input Voltage (other pins)
Vin2
-0.3 to VDD+0.3
V
Maximum Output Voltage
Vout
-0.3 to VDD+0.3
V
Maximum Operating Temperature
Topg
0 to +70
°C
Maximum Storage Temperature
Tstg
-25 to +125
°C



Description

The CS8954 micro-controller is an 8051 CPU core embedded device especially tailored for consumer and/or general purpose applications. It includes an 8051 CPU core, 768-byte SRAM, 4 channels of 6-bit ADC, 6 channels of PWM DAC, and a 64K-byte internal program Flash-ROM memory in 40-pin PDIP, 44-pin PLCC or PQFP package.
