CS8904

Features: · Single-Chip Quad IEEE 802.3-compliant Ethernet Interface· 3 V and 5 V Operation· Full and Half Duplex Operation· Auto-Negotiation with Manual Override Capability· Four 10BASE-T Ports with Integrated Active Analog Filters· Automatic Polarity Detection and Correction· Integrated Manchest...

product image

CS8904 Picture
See larger image
SeekIC No. : 004316795 Detail

CS8904: Features: · Single-Chip Quad IEEE 802.3-compliant Ethernet Interface· 3 V and 5 V Operation· Full and Half Duplex Operation· Auto-Negotiation with Manual Override Capability· Four 10BASE-T Ports wit...

CS8904 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS8904
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single-Chip Quad IEEE 802.3-compliant Ethernet Interface
· 3 V and 5 V Operation
· Full and Half Duplex Operation
· Auto-Negotiation with Manual Override Capability
· Four 10BASE-T Ports with Integrated Active Analog Filters
· Automatic Polarity Detection and Correction
· Integrated Manchester Encoder/Decoders (ENDEC)
· Link Status LED Driver for Each Port
· Per Port Control - Manual Duplex select (Half or Full), Auto-Negotiation select, Loopback select
·Per Port Status - Collision detect, Carrier detect, Jabber indication, Link status, Duplex status, Auto-Negotiation status


Pinout

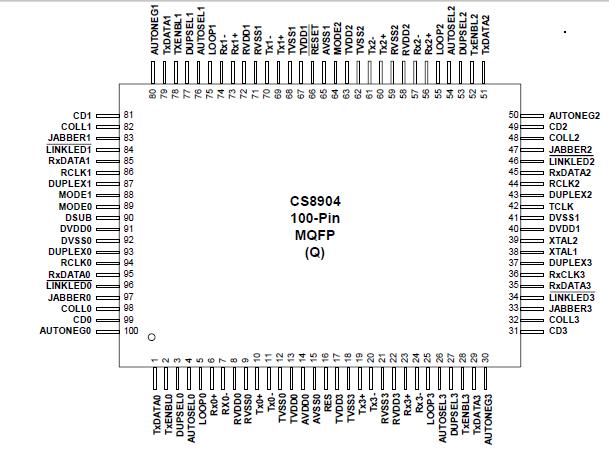

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Power Supply
VDD
-0.3
6.0
V
Input Current Except Supply Pins
-
±10.0
mA
Input Voltage
-0.3
VDD + 0.3
V
Ambient Temperature Power Applied
-55
+125
Storage Temperature
-65
+150
WARNING:
Operation at or beyond these limits may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.


Description

The CS8904 combines four 10BASE-T Ethernet ENDECs and transceivers into a single low-cost device. Complete on-chip 10BASE-T Transceivers and filters eliminate external components, saving valuable board space and reducing cost. The CS8904 offers maximum design flexibility by providing individual control and status lines for each of the four interface ports.

The CS8904 supports full-duplex operation, allowing simultaneous transmission and reception on all ports. Auto-negotiation allows the automatic selection of either half or full duplex operation on a per-port basis.

The CS8904 is ideally suited for cost-sensitive Ethernet switch designs. With the CS8904, engineers can design a four-port Ethernet Transceiver circuit that occupies less than 1.0 square inch (6.5 sq. cm) of space, exclusive of transformers and RJ-45 connectors.
