Features:

• Designed special for VCD, Karaoke, digital VCR,DVD, DIGITAL set-top box.
• Support the following 4 modes:
   NTSC, PAL-M, PAL-BDGHI, PAL-Nc
• 8-bit 4:2:2 YcbCr inputs for glueless interface to MPEG decoders
• CVBS (composite YC) or S-video (Y and C) outputs
• Support CCIR-6-1 for mat, non-square pixel
• 2x oversampling simplify external filtering
• 6MHz and 1.3MHz anti-alias filters for Y and U/V channels each
• On-chip color bar generation
• 2 channels of 9-bit DAC
• Support master and slave modes
• Support interlace operation only
• Automatic mode detection/switching in slave mode
• 3.3V supply voltage; 5V tolerant for all digital I/O pins


Pinout

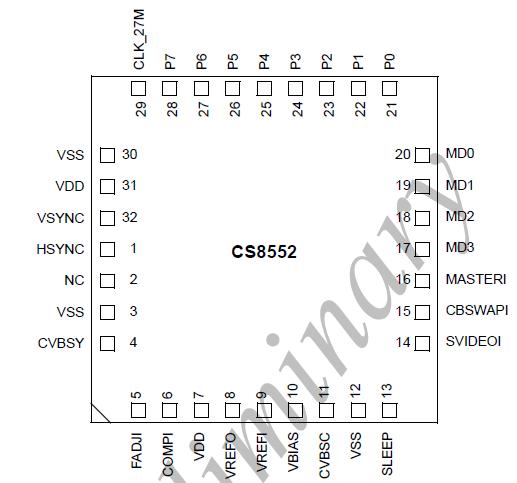

Connection Diagram


Specifications

Symbol
Parameter
Min
Typ
Max
Unit
VAA
 Power Supply (Measured to ground)
--
--
5
V
TA
 Ambient Operating Temperature
-55
--
125
°C
 Voltage on Any Signal Pin
GND-0.3

VAA+0.3
V
TS
 Storage Temperature
-65

+150
°C
TJ
 Junction Temperature


+150
°C



Description

CS8552 provides full conversion from digital video format YCbCr into NTSC/PAL composite and Svideo.It can be used in VCD, DVD, digital VCR application.

Two-times oversampling CS8552 reduces the output filter requirements and guarantees no alias interference by internal UV filters and Y filter.

Two 9-bit DACs CS8552 provides two channels for a Svideo output port or two composite video outputs with high quality of image.

32-pin package and pin assignment make CS8552 compatible with major vendors.
