CS8403A

Features:

Sample rates up to 108 kHz
Supports:  AES/EBU, IEC 958, S/PDIF, & EIAJ CP-340 professional and consumer formats
Generates CRC codes and parity bits
On-Chip RS422 line driver
Configurable buffer memory (CS8403A)
Transparent mode allows direct connection of CS8404A and CS8414 or CS8403A and CS8413
Pin compatible with CS8401A and CS8402A

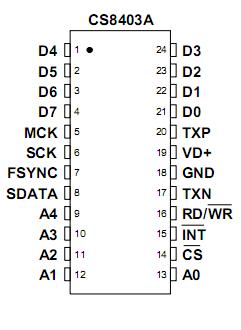

Pinout




Specifications



Parameters	Symbol	Min	Max	Units
DC Power Supply	VD+	-	6.0	V
Input Current, Any Pin Except Supply                       Note 1	Iin	-	±10	mA
Digital Input Voltage	VIND	-0.3	VD+	V
Ambient Operating Temperature (power applied)	TA	-55	125	°C
Storage Temperature	Tstg	-65	150	°C

Description

The CS8403A and CS8404A are digital audio transmit-ters which support 96 kHz sample  rate operation. Thedevices encode and transmit audio data according to theAES/EBU, IEC958, S/PDIF,  & EIAJ CP-340  interfacestandards. The CS8403A  and CS8404A accept audio and digital data, which is then multiplexed, encoded and driven onto a cable. The audio serial port is double buff-ered and capable of supporting a wide variety of formats.

The CS8403A has a configurable internal buffer memo-ry, loaded via a parallel port, which may be used to bufferchannel status, auxiliary data, and/or user data.

The CS8404A multiplexes the channel, user, and validitydata directly  from serial  input pins with dedicated inputpins for the most important channel status bits.
