CS8391

Features:

· 5V, 250mA Primary Output
· 5V, 100mA Secondary Output
· 3% Tolerance, Both Outputs
· ON/OFF Control for Primary Output
· Low Quiescent Current Drain (100µA VOUT2)
· Low Reverse Current
· Protection Features
    Reverse Battery (-15V)
    Short Circuit
    Overtemperature

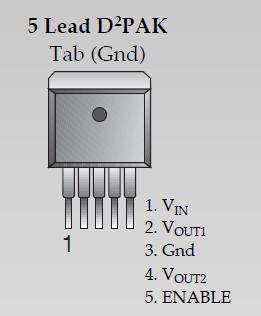

Pinout




Specifications

Input Voltage..................................................................................-15V to 45V
Power Dissipation.....................................................................Internally Limited
Operating Temperature Range...................................................-40 to +125
Maximum Junction Temperature ...............................................-40 to +150
Storage Temperature Range .....................................................-55 to +150
Electrostatic Discharge (Human Body Model) ................................................4kV
Lead Temperature Soldering
Wave Solder (through hole styles only)..........................10 sec. max, 260 peak
    Reflow (SMD styles only).......................60 sec. max above 183, 230 peak


Description

The CS8391 is a precision, dual 5V micropower linear voltage regulator. The switched primary output (VOUT1) supplies up to 250mA while the secondary (VOUT2) is capable of supplying 100mA. Both outputs have a maximum dropout voltage of 600mV and low reverse current. Quiescent current drain is typically 150µA when supplying 100µA from each output.

The ENABLE input CS8391 provides logic level control of the primary output. With the primary output disabled, quiescent current drain is typically 100µA when supplying 100µA from the secondary output.

The CS8391 is extremely robust with protection provided for reverse battery, short circuit, and overtemperature on both outputs. The CS8391 is available in a 5-lead D²PAK.
