CS8321

Features:

· 5V ±2% Output
· Low 140µA (typ) Quiescent Current
· 150mA Output Current Capability
· Fault Protection -15V Reverse Voltage Output Current Limit
· Low Reverse Current (Output to Input)

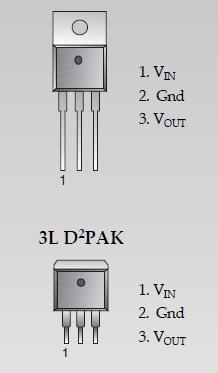

Pinout




Specifications

Transient Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -15V, 45V
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  Internally Limited
ESD Susceptibility (Human Body Model) . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 2kV
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .  -40to 150
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . -65 to 150
Lead Temperature Soldering
Wave Solder (through hole styles only) . . . . . . . .. . . . . . . . .10 sec. max, 260 peak
    Reflow (SMD styles only) . . . . . . . . . . . . . . .60 sec. max above 183, 230 peak


Description

The CS8321 is a precision 5V micropower voltage regulator with very low quiescent current (140µA typ at 1mA load). The 5V output is accurate within ±2% and supplies 150mA of load current with a typical dropout voltage of only 300mV. This combination of low quiescent current and outstanding regulator performance makes the CS8321 ideal for any battery operated equipment.

The regulator is protected against reverse battery and short circuit conditions. CS8321 can withstand 45V load dump transients making it suitable for use in automotive environments.
