Product Details

Description



Features:

`Dual T1/E1 Line Interface
`3.3 Volt and 5 Volt Versions
`Crystal-less Jitter Attenuator Meets European CTR 12 and ETSI ETS 300 011 Specifications
`Matched Impedance Transmit Drivers
`Transmitter Tri-state Capability
`Common Transmit and ReceiveTransformers for all Modes
`Serial and Parallel Host Mode Operation
`User-customizable Pulse Shapes
`Supports JTAG Boundary Scan
`Compliant with:
ITU-T Recommendations: G.703, G.704, G.706, G.732, G.775 and I.431
American National Standards (ANSI): T1.102, T1.105, T1.403, T1.408, and T1.231
FCC Rules and Regulations: Part 68 and Part 15
AT&T Publication 62411
ETSI ETS 300 011, 300 233, CTR 12, TBR 13
`TR-NET-00499




Pinout

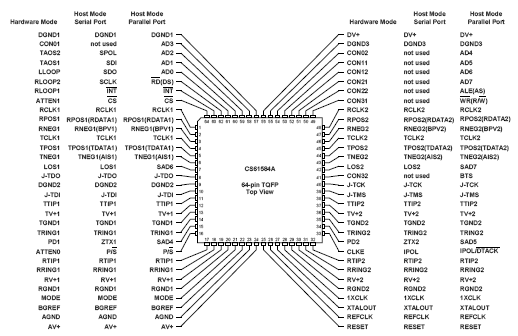

Connection Diagram




Specifications

Parameter
Symbol
Min
Max
Unit
DC Supply (TV+1, TV+2, RV+1, RV+2, AV+, DV+) (Note 1)
-
6.0
V
Input Voltage (Any Pin)
Vin
RGND - 0.3
(RV+) + 0.3
V
Input Current (Any Pin) (Note 2)
Iin
-10
10
mA
Ambient Operating Temperature
TA
-40
85
°C
Storage Temperature
Tstg
-65
150
°C





Description

The CS61584A is a dual line interface for T1/E1 applications, designed for high-volume cards where low power and high density are required. The device is optimized for flexible microprocessor control through a serial or parallel host mode interface. Hardware mode operation is also available.

Matched-impedance drivers CS61584A reduce power consumption and provide substantial transmitter return loss. The transmitter pulse shapes are customizable to allow non-standard line loads. Crystal-less jitter attenuation complies with most stringent standards. Support of JTAG boundary scan enhances system testability and reliability.
