CS61535A

Features:

· Provides Analog PCM Line Interface for T1 and E1 Applications
· Provides Line Driver, and Data and Clock Recovery Functions
· Transmit Side Jitter Attenuation Starting at 6 Hz, with > 300 UI of Jitter Tolerance
· Low Power Consumption (typically 175 mW)
· B8ZS/HDB3/AMI Encoders/Decoders
· 14 dB of Transmitter Return Loss
· Compatible with SONET, M13 , CCITT G.742, and Other Asynchronous Muxes




Application

· Interfacing network transmission equipment such as SONET multiplexor and M13 to a DSX-1 cross connect.
· Interfacing customer premises equipment to a CSU.
· Interfacing to E1 links.

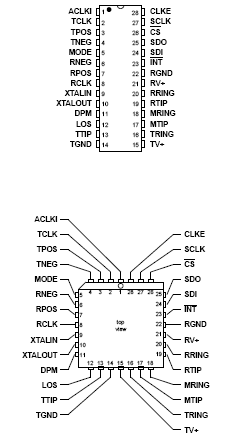

Pinout






Specifications

Parameter	Symbol	Min	Max	Unit
DC Supply (referenced to RGND=TGND=0 V)	RV+ TV+	- -	6.0 (RV+) + 0.3	V V
Input Voltage, Any Pin (Note 1)	Vin	RGND - 0.3	(RV+) + 0.3	V
Input Current, Any Pin (Note 2)	Iin	-10	10	mA
Ambient Operating Temperature	TA	-40	85	°C
Storage Temperature	Tstg	-65	150	°C

Description

The CS61535A combines the complete analog transmit and receive line interface for T1 or E1 applications in a low power, 28-pin device operating from a +5V supply.

The device features a transmitter jitter attenuator making it ideal for use in asynchronous multiplexor systems with gapped transmit clocks. The CS61535A provides a matched, constant impedance output stage to insure signal quality on mismatched, poorly terminated lines.

Both ICs use a digital Delay-Locked-Loop clock and data recovery circuit CS61535A which is continuously calibrated from a crystal reference to provide excellent stability and jitter tolerance.
