CS61310

Features:

`Provides T1 line interface
`No crystal needed for jitter attenuation
`Greater than 14 dB of transmit return loss
`Meets AT&T 62411 jitter tolerance and attenuation requirements
`Meets ANSI T1.231B requirements for LOS and AIS
`AWG for user programmable pulse shapes
`TX driver high impedance / low power control
`Generation and detection of loop up / loop down signaling
`Selectable unipolar or bipolar I/O
`Compliant with:
- American National Standards (ANSI): T1.102, T1.105, T1.403, T1.408, and T1.231
- FCC Rules and Regulations: Part 68 and Part 15
- AT&T Publication 62411
- TR-NET-00499

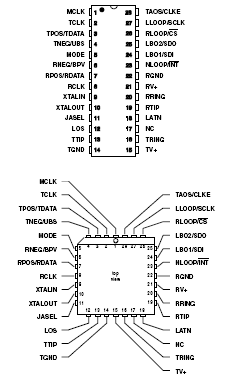

Pinout




Specifications

Parameter	Symbol	Min	Max	Unit
DC Supply (referenced to RGND=TGND=0 V)	RV+ TV+	- -	6.0 (RV+) + 0.3	V V
Input Voltage, Any Pin	Vin	RGND - 0.3	(RV+) + 0.3	V
Input Current, Any Pin (Note 1)	Iin	-10	10	mA
Ambient Operating Temperature	TA	-40	85	°C
Storage Temperature	Tstg	-65	150	°C

Description

The CS61310 is a T1 primary rate line interface unit. It combines the complete analog transmit-and-receive circuitry for a single, full-duplex interface at T1 rates. The device is pin- and function-compatible with the Level One LXT310.

Enhanced functionality is available through an extended register set, allowing custom pulse shape generation as well as generation and detection of loop up and loop down codes. The CS61310 features crystal-less jitter attenuation.
