Product Details

Description



Features:

·Very Low Power Consumption
   - Single supply +5 V operation: 1.7 mW
   - Dual supply ±5 V operation: 3.2 mW
·Offers superior performance to VFCs and multi-slope integrating ADCs
·Differential Inputs
   - Single Channel (CS5507/8) and Four-Channel (CS5505/6) pseudo-differential versions
·Either 5 V or 3.3 V Digital Interface
·Linearity Error:
   - ±0.0015% FS (16-bit CS5505/7)
   - ±0.0007% FS (20-bit CS5506/8)
·Output update rates up to 100/second
·Flexible Serial Port
·Pin-Selectable Unipolar/Bipolar Ranges



Pinout

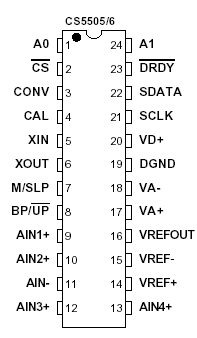

  Connection Diagram


Specifications

Parameter
Symbol
Min
Typ
Max
UnitS
DC Power Supplies:                 Digital Ground (Note 22)
                                                Positive Digital (Note 23)
                                                Positive Analog
                                                Negative Analog
                                                (VA+)-(VA-)
                                                (VA+)-(VD+)
DGND
VD+
VA+
VAVdiff1
Vdiff2
-0.3
-0.3
-0.3
+0.3
-0.3
-0.3
-
-
-
-
-
-
VD+)-0.3
6.0 or VA+
12.0
-6.0
12.0
12.0
V
V
V
V
V
V
Input Current, Any Pin Except Supplies (Note 24,25)
Iin
-
±10
mA
Analog Input Voltage AIN and VREF pins
VINA
(VA-) - 0.3
(VA+) + 0.3
V
Digital Input Voltage
VIND
-0.3
(VD+) + 0.3
V
Ambient Operating Temperaturet
TA
-55
125
Storage temperature
Tstg
-65
150
Notes: 22. No pin should go more positive than (VA+)+0.3V.
           23. VD+ must always be less than (VA+)+0.3 V,and can never exceed 6.0V.
           24. Applies to all pins including continuous overvoltage conditions at the analog input (AIN) pin.
           25. Transient currents of up to 100mA will not cause SCR latch-up. Maximum input current for a power
                 supply pin is ± 50 mA.

* WARNING: Operation at or beyond these limits may result in permanent damage to the device. Normal operation
                     is not guaranteed at these extremes.


Description

The CS5505/6/7/8 are a family of low power CMOS A/D converters which are ideal for measuring low-frequency signals representing physical, chemical, and biological processes.

The CS5507/8 have single-channel differential analog and reference inputs while the CS5505/6 have four pseudo-differential analog input channels. The CS5505/7 have a 16-bit output word. The CS5506/8 have a 20-bit output word.The CS5505/6/7/8 sample upon command up to 100 output updates per second.

The on-chip digital filter CS5505 offers superior line rejection at 50 and 60 Hz when the device is operated from a 32.768 kHz clock (output word rate = 20 Hz.).

The CS5505/6/7/8 include on-chip self-calibration circuitry which can be initiated at any time or temperature to ensure minimum offset and full-scale errors.

The CS5505/6/7/8 serial port offers two general-purpose modes for the direct interface to shift registers or synchronous serial ports of industry-standard microcontrollers.
