CS5451A

Features: Synchronous Sampling On-chip 1.2V Reference (25ppm/ typ) Power Supply Configurations:VA+ = +3 V; VA- = -2 V; VD+ = +3VSupply tolerances ±10% Power Consumption -20 mW Typical at VD+ = +3V Simple Four-wire Serial Interface Charge Pump Driver output generates negative power supply. Ground-...

product image

CS5451A Picture
See larger image
SeekIC No. : 004316644 Detail

CS5451A: Features: Synchronous Sampling On-chip 1.2V Reference (25ppm/ typ) Power Supply Configurations:VA+ = +3 V; VA- = -2 V; VD+ = +3VSupply tolerances ±10% Power Consumption -20 mW Typical at VD+ = +3V ...

CS5451A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS5451A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Synchronous Sampling
On-chip 1.2V Reference (25ppm/ typ)
Power Supply Configurations:
VA+ = +3 V; VA- = -2 V; VD+ = +3V
Supply tolerances ±10%
Power Consumption
-20 mW Typical at VD+ = +3V
Simple Four-wire Serial Interface
Charge Pump Driver output generates negative power supply.
Ground-Referenced Bipolar Inputs




Pinout

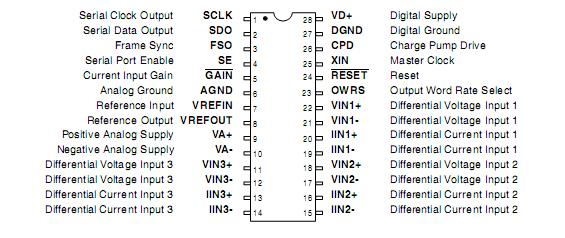

Connection Diagram




Specifications

Parameter

Symbol

Min
typ

Max

Unit

DC Power Supplies

Positive Digital
Positive Analog
Negative Analog

VD+
VA+
VA-

-0.3
-0.3
-2.5
-
-

+3.5
+3.5
-0.3

V
V
V

Input Current, Any Pin Except Supplies

Iin

-
-

10

mA

Output Current
IOUT
-
-
25
mA
Power Dissipation
PDN
-
-
500
mW
Analog Input Voltage
All Analog Pins
VINA
(VA-)-0.3
-
(VA+) + 0.3
V

Digital Input Voltage

All Digital Pins

VIND

-0.3
-

(VD+)+ 0.3V

V

Ambient Operating Temperature

TA

-40

+85

Storage Temperature

Tstg

-65

+150






Description

The CS5451A is a highly integrated, Delta-Sigma analog-to-digital (A/D) converter developed for the power measurement industry. The CS5451A combines six Delta-Sigma A/D converters, decimation filters and a serial interface on a single chip.

The CS5451A interfaces directly to a current transformer or shunt to measure current and to a resistive divider or transformer to measure voltage. The product features a serial interface for communication with a microcontroller or DSP. The product is initialized and fully functional upon reset and includes a voltage reference.
