CS53L32A

Features:

􀁺20-Pin TSSOP package
􀁺 1.8 V to 3.3 V supply
􀁺 24-bit conversion / 96 kHz sample rate
􀁺98 dB dynamic range at 3 V supply
􀁺 -88 dBFS THD+N
􀁺 Low power consumption
    11 mW at 1.8 V
􀁺 Up to 32 dB gain
    20 dB gain step
    12 dB variable input gain, 1 dB steps
    Changes made at zero crossings
􀁺 Stereo inputs
􀁺 Digital volume control
    96 dB attenuation, 1 dB step size
     Mute
    Soft ramping
􀁺 2:1 Input mux

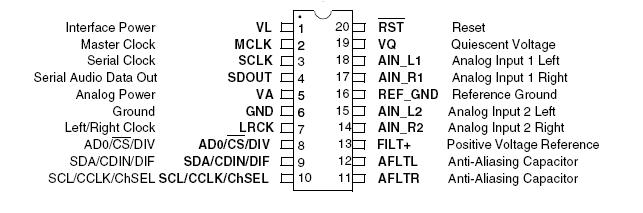

Pinout




Specifications

Parameters		Symbol	Min	Max	Units
DC Power Supplies:	Positive Analog Digital I/O	VA VL	-0.3 -0.3	4.0 4.0	V V
Input Current, Any Pin Except Supplies		Iin	-	±10	mA
Digital Input Voltage		VIND	-0.3	VL+0.4	V
Ambient Operating Temperature (power applied)		TA	-55	125	°C
Storage Temperature		Tstg	-65	150	°C

WARNING: Operation at or beyond these limits may result in permanent damage to the device. Normal operation is
not guaranteed at these extremes.


Description

The CS53L32A is a highly integrated, 24-bit, 96 kHz audio ADC providing stereo analog-to-digital converters using delta-sigma conversion techniques. This device includes volume control and line level inputs in a 20-pin TSSOP package.
The CS53L32A is based on delta-sigma modulation allowing infinite adjustment of the sample rate between 2 kHz and 100 kHz simply by changing the master clock frequency.
The CS53L32A contains adjustable analog gain, a 2:1 input mux, and digital attenuation.
The CS53L32A operates from a +1.8 V to +3.3 V supply.These features are ideal for portable MP3 players, MD recorders/players, digital camcorders, PDAs, set-top boxes, and other portable systems that require extremely low power consumption in a minimum of space.
