Features:

1 to 4 Channel Digital Decimation Filter
Multiple On-Chip FIR and IIR Coefficient Sets
Programmable Coefficients for Custom Filters
Synchronous Operation
Selectable Output Word Rate
4000, 2000, 1000, 500, 333, 250 SPS
200, 125, 100, 50, 40, 25, 20, 10, 5, 1 SPS
Digital Gain and Offset Corrections
Test DAC Bit Stream Generator
Sine Wave or Impulse Output Mode
Time Break Controller, General Purpose I/O
Secondary SPI Port, Boundary Scan JTAG
Microcontroller or EEPROM Configuration
Small Footprint 64-pin TQFP Package
Low Power Consumption
9 mW per Channel at 500 SPS
Flexible Power Supplies
I/O Interface: 3.3 V or 5.0 V
Digital Logic Core: 3.0V, 3.3V or 5.0 V

Pinout

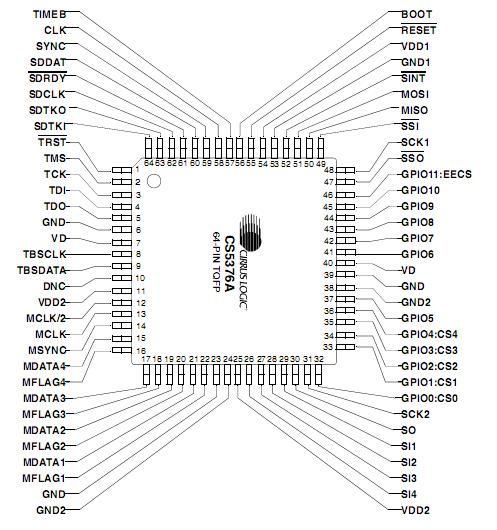

Connection Diagram

Specifications

Parameter		Symbol	Min	Max	Unit
DC Power Supplies	Logic Core Microcontroller Interface Modulator Interface	VD VDD1 VDD2	-0.3 -0.3 -0.3	6.0 6.0 6.0	V V V
Input Current, Any Pin Except Supplies		I_in	-	±10	mA
Input Current, Power Supplies		I_in	-	±50	mA
Output Current		I_OUT	-	±25	mA
Power Dissipation		P_DN	-	500	mW
Digital Input Voltage		V_IND	-0.3	VDD+0.3	V
Ambient Operating Temperature		T_A	-40	+85
Storage Temperature		T_stg	-65	+150

Description

The CS5376A is a multi-function digital filter utilizing a low-power signal processing architecture to achieve efficient filtering for up to four modulators. By combining the CS5376A with CS3301/02 differential amplifiers,CS5371/72 modulators, and the CS4373 test DAC a synchronous high resolution multi-channel measurement system can be designed quickly and easily.

Digital filter coefficients for the CS5376A FIR and IIR filters are included on-chip for a simple setup, or they can be programmed for custom applications. Selectable digital filter decimation ratios produce output word rates from 4000SPS to 1SPS, resulting in measurement bandwidths ranging from 1600Hz down to 400mHz when using the on-chip coefficient sets.The CS5376A includes integrated peripherals to simplify system design: offset and gain corrections, a test DAC bit stream generator, a time break controller, 12 general purpose I/O pins, a secondary SPI port, and a boundary scan JTAG port.
