Features:

·1 to 4 Channel Digital Decimation Filters
   · Coefficient Programmable FIR Filters
   · Coefficient Programmable IIR Filters
   · On-chip FIR and IIR Coefficient Set
·62.5 sps - 4000 sps Output Word Rate
·Programmable Offset and Gain Correction
·High Speed Serial Data Output Port
·DAC Test Bit Stream Generator
·12 General Purpose I/O Pins
·Secondary Master Mode Serial Port
·IEEE 1149.1 JTAG Test Access Port
·Configuration by Microcontroller or EEPROM
·Small Footprint 64 Pin TQFP Package
·Low Power at < 6 mW per Channel
·3.0 V or 5.0 V Operation


Pinout

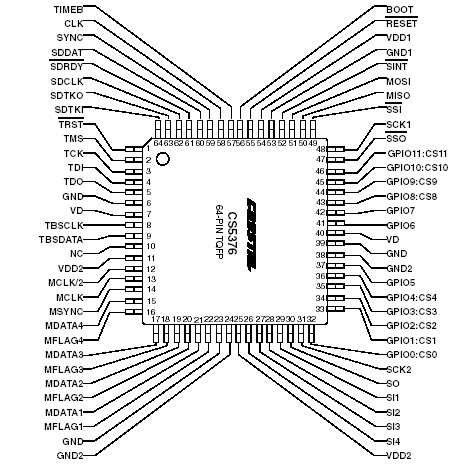

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Units
DC power supplies:                     Digital Supply
                                                    I/O Interface
                                          Modulator Interface
VD
VDD1
VDD2
-0.3
-0.3
-0.3
5.25
5.25
5.25
V
V
V
Input current, any pin except supplies
±10
mA
Operating temperature (power applied)
Tmax
-55
+85
Storage Temperature
Tstg
-65
+150




Description

The CS5376 is a multi-function digital filter utilizing a lowpower signal processing architecture to achieve efficient filtering for up to four ∆− modulators. Used in combination with the CS5371 and CS5372 ∆− modulators, a unique high resolution A/D measurement system results.

Digital filter coefficients for the CS5376 FIR and IIR filters can be programmed for custom applications, or the onchip coefficient set can be used for a simple setup. Filter configuration is initialized through a serial port using a
microcontroller or a configuration EEPROM.

The CS5376 includes a test bit stream generator that produces a 1-bit ∆− modulated output suitable for driving a test DAC. It also includes 12 general purpose I/O pins for local hardware control, a secondary master mode SPI port to communicate with serial peripherals, and an IEEE 1149.1 JTAG test port for boundary scan.
