CS5351

Features: ·Advanced Multi-bit Delta-Sigma Architecture·24-Bit Conversion·108 dB Dynamic Range·98 dB THD+N·System Sampling Rates up to 192 kHz·Single-Ended Analog Inputs·Less than 150 mW Power Consumption·High Pass Filter or DC Offset Calibration·Supports Logic Levels Between 5 and 1.8V·Linear Phas...

product image

CS5351 Picture
See larger image
SeekIC No. : 004316624 Detail

CS5351: Features: ·Advanced Multi-bit Delta-Sigma Architecture·24-Bit Conversion·108 dB Dynamic Range·98 dB THD+N·System Sampling Rates up to 192 kHz·Single-Ended Analog Inputs·Less than 150 mW Power Consum...

CS5351 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS5351
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Advanced Multi-bit Delta-Sigma Architecture
·24-Bit Conversion
·108 dB Dynamic Range
·98 dB THD+N
·System Sampling Rates up to 192 kHz
·Single-Ended Analog Inputs
·Less than 150 mW Power Consumption
·High Pass Filter or DC Offset Calibration
·Supports Logic Levels Between 5 and 1.8V
·Linear Phase Digital Anti-Alias Filtering
·Functionally Compatible with the CS5361




Pinout

CS5351 Product Diagram

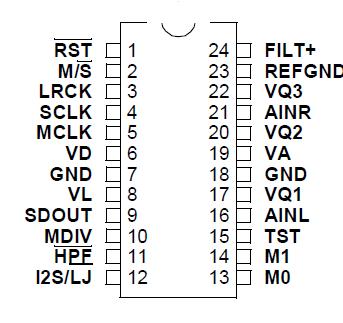

Connection Diagram




Specifications

Resolution (bits) Dynamic Range (dB) THD+N (dB) Sample Rate (kHz) Analog Inputs Power Supply (V) Package
24 108 -98 192 Single-ended VA?=?5;
VD?=?3.3?or 5;
VL?=?2.5?to?5		 24 SOIC
24 TSSOP


Parameter
Symbol
Min
Max
Units
DC Power Supplies: Analog
Logic
Digital
VA
VL
VD
-0.3
-0.3
-0.3
-
-
-
V
V
V
Input Current (Note 6)
Iin
-
-
mA
Analog Input Voltage (Note 7)
VIN
GND-0.7
-
V
Digital Input Voltage (Note 7)
VIND
-0.7
-
V
Ambient Operating Temperature (Power Applied) -KS
-BS
TA
TA
-20
-50
-
-
°C
°C
Storage Temperature
Tstg
-65
-
°C
Notes:
6. Any pin except supplies. Transient currents of up to ±100 mA on the analog input pins will not cause SRC
latch-up.
7. The maximum over/under voltage is limited by the input current.




Description

The CS5351 is a complete analog-to-digital (A/D) converter for digital audio systems. It performs sampling, A/D conversion and anti-alias filtering, generating 24-bit values for both left and right inputs in serial form at sample rates up to 192 kHz per channel.

The CS5351 uses a fifth-order, multibit Delta-Sigma modulator followed by digital filtering and decimation, which removes the need for an external anti-alias filter.

The CS5351 is ideal for audio systems requiring wide dynamic range, negligible distortion and low noise, such as audio/video receivers, DVD-R, CD-R, digital mixing consoles, effects processors and automotive systems.
