CS5206-1

Features:

·Output Current to 6A
·Output Trimmed to +/- 1%
·Dropout Voltage 1.3V @ 6A
·Fast Transient Response
·Fault Protection Circuitry Thermal Shutdown Overcurrent Protection Safe Area Protection

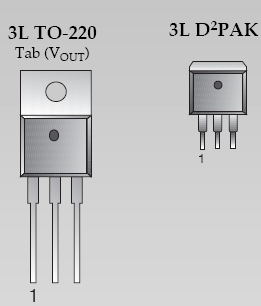

Pinout




Specifications

Supply Voltage, V_CC ...................................................................................................................17V
Operating Temperature Range......................................................................................40¡C to 70
Junction Temperature ..............................................................................................................150
Storage Temperature Range .....................................................................................-60 to 150
Lead Temperature Soldering: Wave Solder (through hole styles only).......10 sec. max, 260 peak
Reflow (SMD styles only) .......................................................60 sec. max above 183, 230 peak


Description

The CS5206 -X series of linear regulators provides 6A at adjustable and fixed voltages of 3.3V and 5V with an accuracy of ±1% and ±2% respectively. The adjustable version uses two external resistors to set the output voltage within a 1.25V to 13V range.

The regulators CS5206-1 are intended for use as post regulators and microprocessor supplies. The fast loop response and low dropout voltage make these regulators ideal for applications where low voltage operation and good transient response are important.

The circuit CS5206-1 is designed to operate with dropout voltages as low as 1V depending on the output current level. The maximum quiescent current is only 10mA at full load.

The regulators CS5206-1 are fully protected against overload conditions with protection circuitry for Safe Operating Area (SOA), overcurrent and thermal shutdown.

The regulators CS5206-1 are available in TO- 220 and surface mount D² packages.
