Features:

`420 MIPs SLIMD™ DSP Architecture with increased internal memory for greater performance
`Hardware acceleration for Microsoft DirectSound® and DirectSound3D® Positional Audio
` Sensaura™ 3-D, 2 or 4 channel audio
` EAX™ 1.0 enhanced environmental audio standard
` Unlimited-Voice Wavetable Synthesis with Effects including DLS support
` Acoustic Echo Cancellation Hardware Acceleration for NetMeeting™
` 10 Band Graphic Equalization
` High Quality Hardware Sample Rate Conversion (90+ dB Dynamic Range)
` PC/PCI, DDMA, and CrystalClear Legacy Support (CCLS™)
` PCI 2.1 Compliant PCI Interface
` Full duplex, 128 Stream DMA Interface with Hardware Scatter/Gather Support
` PCI Power Management (D0 through D3cold), APM 1.2, and ACPI 1.0
` Power Management Event (PME#)
    Generation within D0-D3cold
` Dual AC '97 2.1 Codec Interface
` Asynchronous Digital Serial Interface (ZV Port)
` S/PDIF Digital Input and Output support for PCM and AC3 encoded 5.1 Channel Formats
` DirectInput™ Joystick and MPU- 401 MIDI In/Out
` 3.3 V / 2.5 V Power Supply (5 V tolerant I/O)
` PC 98 and PC 99 Compliant


Pinout

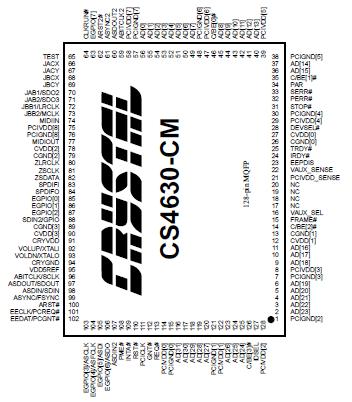

Connection Diagram


Specifications

Parameter
Symbol
Min
Typ
Max
Unit
Power Supplies
PCIVDD
CVDD
CRYVDD
VDD5REF
-
-
-
-
-
-
-
-
4.6
TBD
4.6
5.5
V
V
V
V
Total Power Dissipation (Note 1)
-
-
TBD
W
Input Current per Pin, DC (Except supply pins)
-
-
TBD
mA
Output current per pin, DC
-
-
TBD
mA
Input voltage (Note 2)
TBD
-
TBD
V
Ambient temperature (power applied) (Note 3)
-45
-
85
Storage temperature
-55
-
150

Notes: 1. Includes all power generated by AC and/or DC output loading.
2. The power supply pins are at recommended maximum values. XTALI & XTALO are at 3.6 V maximum.
3. At ambient temperatures above 70° C, total power dissipation must be limited to less than 0.4 Watts.
WARNING: Operation beyond these limits may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.


Description

The CS4630 is a high performance upgrade to the CS4624 PCI audio accelerator. With support for legacy compatibility modes, the CS4630 enables real mode DOS compatibility within PCI-only audio subsystems. This device, combined with application and driver software, provides a complete system solution for hardware acceleration of Microsoft's DirectSound, DirectSound3D, DirectInput, and Wavetable Synthesis. WDM drivers provide support for both Windows 98® and Windows 2000®.

The CS4630 is based on the Cirrus Logic CrystalClear™ Stream Processor (SP) DSP core. The SP core is optimized for digital audio processing, and is powerful enough to handle complex signal processing tasks such as Sensaura 3D, 4-channel output, and hardware wavetable synthesis. The SP core is supported by a bus mastering PCI interface and a built-in dedicated DMA engine with hardware scatter-gather support. These support functions ensure extremely efficient transfer of audio data streams to and from host-based memory buffers, providing a system solution with maximum performance and minimal host CPU loading.
