Product Details

Description



Features:

·Microprocessor Compatible Inputs
·On-Chip Power Device  2.4A Peak, Typical CS-4524.4A Peak, Typical CS453
·Low Thermal Resistance To Grounded Tab
·60V Peak Transient Voltage
·Low Saturation Voltage
·Operates Over a 4.5V to 24V Battery Range


Pinout

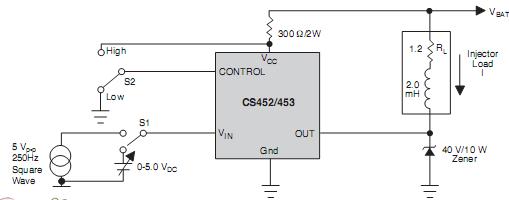

Connection Diagram


Specifications

Power Supply Voltage (V CC).....................................................24V
VIN..................................................................................-6.0 to 24V
Control............................................................................-6.0 to 24V
Peak Transient Voltage (46V Load Dump)..................................60V
Internal Regulator Current......................................................50mA
Junction Temperature Range...................................-40°C to +150°
Operating Temperature Range (Tab Temperature)..-40°C to +125°
Storage Temperature Range....................................-65°C to +150°
Lead Temperature Soldering
Wave Solder (through hole styles only)..... 10 sec. max, 260°C pea
