CS4362A

Features: ` Advanced Multi-bit Delta Sigma Architecture` 24-bit Conversion` Up to 192 kHz Sample Rates` 114 dB Dynamic Range` -100 dB THD+N` Direct Stream Digital Mode On-chip 50 kHz filter Matched PCM and DSD analog output levels` Selectable Digital Filters` Volume Control with 1-dB Step Size and...

product image

CS4362A Picture
See larger image
SeekIC No. : 004316419 Detail

CS4362A: Features: ` Advanced Multi-bit Delta Sigma Architecture` 24-bit Conversion` Up to 192 kHz Sample Rates` 114 dB Dynamic Range` -100 dB THD+N` Direct Stream Digital Mode On-chip 50 kHz filter Matched ...

CS4362A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS4362A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Advanced Multi-bit Delta Sigma Architecture
` 24-bit Conversion
` Up to 192 kHz Sample Rates
` 114 dB Dynamic Range
` -100 dB THD+N
` Direct Stream Digital Mode
On-chip 50 kHz filter
Matched PCM and DSD analog output levels
` Selectable Digital Filters
` Volume Control with 1-dB Step Size and Soft Ramp
` Low Clock Jitter Sensitivity
` +5 V Analog Supply, +2.5 V Digital Supply
` Separate 1.8 to 5 V Logic Supplies for the Control & Serial Ports

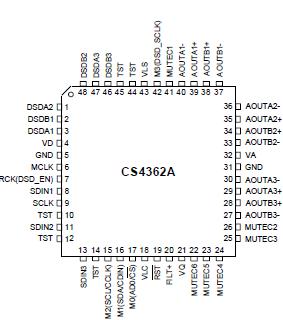

Pinout

Connection Diagram


Specifications

Parameters Symbol Min Max Units
DC Power Supply Analog power
Digital internal power
Serial data port interface power
Control port interface power		 VA
VD
VLS
VLC		 -0.3
-0.3
-0.3
-0.3		 6.0
3.2
6.0
6.0		 V
Input Current Any Pin Except Supplies Iin   ±10 mA
Digital Input Voltage Serial data port interface
Control port interface		 VIND-S
VIND-C		 -0.3
-0.3		 VLS+ 0.4
VLC+ 0.4		 V
Ambient Operating Temperature (power applied) Top -55 125 °C
Storage Temperature Tstg -65 150 °C



Description

The CS4362A is a complete 6-channel digital-to-analog system. This D/A system includes digital de-emphasis, one-dB step size volume control, ATAPI channel mixing, selectable fast and slow digital interpolation filters followed by an oversampled, multi-bit delta sigma modulator which includes mismatch shaping technology that eliminates distortion due to capacitor mismatch. Following this stage is a multi-element switched capacitor stage and low-pass filter with differential analog outputs.

The CS4362A also has a proprietary DSD processor which allows for 50 kHz on-chip filtering without an intermediate decimation stage.

The CS4362A accepts PCM data at sample rates from 4 kHz to 216 kHz, DSD audio data, and delivers excellent sound quality. These features are ideal for multichannel audio systems including SACD players, A/V receivers, digital TV's, mixing consoles, effects processors, sound cards and automotive audio systems.
