Features: `Four 24-bit A/D, Six 24-bit D/A Converters
`ADC Dynamic Range
105 dB Differential
102 dB Single-ended
`DAC Dynamic Range
108 dB Differential
105 dB Single-ended
`ADC/DAC THD+N
-98 dB Differential
-95 dB Single-ended
`Compatible with Industry-standard Time Division Multiplexed (TDM) Serial Interface
`DAC Sampling Rates up to 192 kHz
`ADC Sampling Rates up to 96 kHz
`Programmable ADC High-pass Filter for DC Offset Calibration
`Logarithmic Digital Volume Control
`Hardware Mode or Software I²C & SPI™

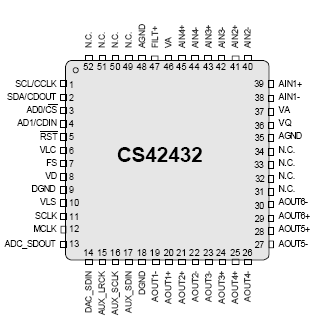

`Supports Logic Levels Between 5 V and 1.8 VPinout
Specifications
| Resolution (bits) |
Dynamic Range (dB) |
THD+N (dB) |
Sample Rate (kHz) |
Analog I/O |
Power Supply (V) |
Type |
Package |
| 24 |
105?/ 108?DACs;
102?/ 105?ADCs |
-95?/ -98?DACs;
-95?/ -98?ADCs |
192 |
Single-ended or Differential DACs and ADCs |
VA?=?3.3?or 5;
VD?=?3.3;
VL?=?1.8?to?5 |
Multi-Channel |
52 MQFP |
DescriptionThe CS42432 is a highly integrated CODEC engineered to simplify design for home theaters and automotive audio systems. This CODEC allows system designers to deliver advanced multichannel surround-sound performance for entry- and mid-level audio products.
The CS42432 includes four single-ended or differential inputs and six single-ended or differential outputs. An auxiliary serial input is available for an additional two channels of PCM (pulse code modulation) data.
The CS42432 features six digital-to-analog (D/A) converters. These D/A converters offer 24-bit conversion, with support for sample rates up to 192 kHz, and provide a dynamic range of up to 108 dB. Each D/A converter channel provides digital volume control and can operate with differential or single-ended outputs.
There are four CS42432 24-bit A/D converters, which also support sample rates up to 192 kHz and provide a dynamic range of up to 105 dB. Digital volume control is provided for each A/D converter, with selectable overflow detection.
All of the on-chip converters CS42432 utilize multi-bit Delta-Sigma modulators to lower out-of-band noise and improve performance. Also included are separate control port and serial port supplies for a glueless interface to DSPs.
The CS42432 includes a TDM-only serial port.
The CS42432 delivers advanced performance, design flexibility, a reduction in BOM costs and competitive price-points. This device is ideal for audio applications such as A/V receivers, DVD receivers and automotive audio systems as well as applications that require wide dynamic range, negligible distortion and low noise.
