CS4192

Features: • Serial Input Bus• 2.0 MHz Operating Frequency• Tangential Drive Algorithm• 70 mA Drive Circuits• 0.5° Accuracy (Typ.)• PowerOnReset• Protection Features Output Short Circuit Overtemperature• Internally Fused Leads in SO16L PackagePinoutSp...

product image

CS4192 Picture
See larger image
SeekIC No. : 004316345 Detail

CS4192: Features: • Serial Input Bus• 2.0 MHz Operating Frequency• Tangential Drive Algorithm• 70 mA Drive Circuits• 0.5° Accuracy (Typ.)• PowerOnReset• Protection ...

CS4192 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS4192
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Serial Input Bus
• 2.0 MHz Operating Frequency
• Tangential Drive Algorithm
• 70 mA Drive Circuits
• 0.5° Accuracy (Typ.)
• PowerOnReset
• Protection Features
Output Short Circuit
Overtemperature
• Internally Fused Leads in SO16L Package

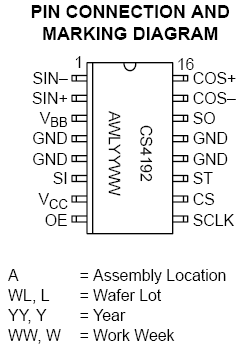

Pinout

Connection Diagram


Specifications

Rating
Value
Unit
Supply Voltage
VBB
VCC
1.0 to 16.5
1.0 to 6.0
V
Digital Inputs
1.0 to 6.0
V
Steady State Output Current
±100
mA
Forced Injection Current (Inputs and Supply)
±10
mA
Operating Junction Temperature, (TJ)
150
°C
Storage Temperature Range
65 to 150
°C
Lead Temperature Soldering
Reflow (SMD styles only) Note 1
230 peak
°C
ESD Susceptibility (Human Body Model)
2.0
kV
Package Thermal Resistance, SO16L
JunctiontoCase, RqJC
JunctiontoAmbient, RqJA
18
75
°C/W
°C/W
