CS3706

Features:

· Dual 1.5A Totem Pole Outputs
· 40nsec Rise and Fall into 1000pF
· Parallel or Push-Pull Operation
· Single-Ended to Push-Pull Conversion
· High-Speed Power MOSFET Compatible
· Low Cross-Conduction Current Spike
· Analog Latched Shutdown
· Internal Deadband Inhibit Circuit
· Low Quiescent Current
· 5V to 40V Operation
· Thermal Shutdown Protection

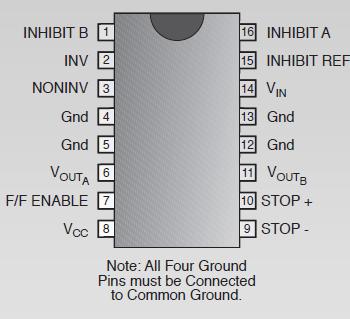

Pinout




Specifications

Logic Supply Voltage (VIN) ................................................................................................................... 40.0V
Output Supply Voltage (VCC) ............................................................................................................    40.0V
Output Current (each output, source, or sink)
    Steady State .............................................................................................................................. ±500mA
    Peak Transient for Less Than 100µs ..............................................................................................   ±1.5A
    Capacitive Discharge Energy.............................................................................................................20.0µJ
Digital Inputs (INV, NONINV) ...................................................................................................................5.5V
Analog Inputs (STOP +, STOP -) ...............................................................................................................VIN
Inhibit Inputs (INHIBIT A, INHIBIT B, INHIBIT REF).....................................................................................5.5V
Operating Temperature Range .........................................................................................................0 to 70
Storage Temperature Range........................................................................................................-65 to 150
Lead Temperature Soldering
    Wave Solder (through hole styles only)...................................................................10 sec. max, 260 peak


Description

The CS3706 integrated circuit provides an interface between lowlevel TTL inputs and high-power switching devices such as power MOSFETs. A typical application is single-ended PWM control to pushpull power control conversion.

The primary function of CS3706 is to convert a bipolar single-ended low current digital input to a pair of totem pole outputs which can source or sink up to 1.5A. An internal flip-flop, driven by doublepulse suppression logic, can be enabled to provide single-ended to push-pull conversion. With the flipflop disabled, the outputs work in parallel for 3.0A capability.

CS3706 Protection functions are also included for pulse-by-pulse current limiting, automatic deadband control and thermal shutdown.
