Product Details

Description



Features:

`Low Offset: 10 V Max
`Low Drift: 0.05 V/°C Max
`Low Noise
12 nV/Hz @ 1.0 Hz
0.1 to 10 Hz = 250 nVp-p
1/f corner @ 0.08 Hz
`Open-Loop Voltage Gain
1000 Trillion Typ
10 Billion Min
`Rail-to-Rail Output Swing
`750 A Supply Current
`Slew rate: 2 V/s



Application

·Thermocouple/Thermopile Amplifiers
·Load Cell and Bridge Transducer Amplifiers
·Precision Instrumentation
·Battery-Powered Systems

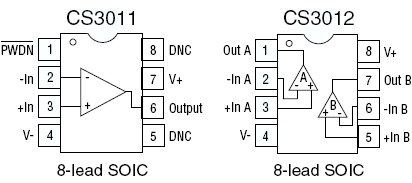

Pinout

  Connection Diagram


Specifications

Parameter
Min
Typ
Max
Unit
Supply Voltage [(V+) - (V-)]
6.8
V
Input Voltage
V- -0.3
V- -0.3
V
Storage Temperature Range
-65
+150
ºC



Description

The CS3011 single amplifier and the CS3012 dual amplifier are designed for precision amplification of low level signals and are ideally suited to applications that require very high closed loop gains. These amplifiers achieve excellent offset stability, super high open loop gain, and low noise over time and temperature. CS3012 also exhibit excellent CMRR and PSRR. The common mode input range includes the negative supply rail. The amplifiers operate with any total supply voltage from 2.7 V to 6.7 V (±1.35 V to ±3.35 V).
