CS3002

Features:

`Low Offset: 10 V Max
`Low Drift: 0.05 V/°C Max
`Low Noise
6 nV/Hz @ 0.5 Hz
0.1 to 10 Hz = 125 nVp-p
1/f corner @ 0.08 Hz
`Open-Loop Voltage Gain
1000 Trillion Typ
10 Billion Min
`Rail-to-Rail Output Swing
`1.8 mA Supply Current
`Slew rate: 5 V/s


Application

·Thermocouple/Thermopile Amplifiers
·Load Cell and Bridge Transducer Amplifiers
·Precision Instrumentation
·Battery-Powered Systems

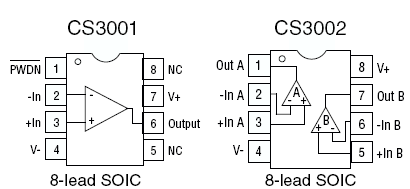

Pinout




Description

The CS3001 single amplifier and the CS3002 dual amplifier are designed for precision amplification of low level signals and are ideally suited to applications that require very high closed loop gains. These amplifiers CS3002 achieve excellent offset stability, super high open loop gain, and low noise over time and temperature. The devices also exhibit excellent CMRR and PSRR. The common mode input range includes the negative supply rail. The amplifiers operate with any total supply voltage from 2.7 V to 6.7 V (±1.35 V to ±3.35 V).
