CS18LV20483

Features:

`Low operation voltage : 2.7 ~ 3.6V Ultra low power consumption : 2mA@1MHz (Max.) operating current 0.50 uA (Typ.) CMOS standby current
`High speed access time : 55/70ns (Max.) at Vcc = 3.0V.
`Automatic power down when chip is deselected.
`Three state outputs and TTL compatible
`Data retention supply voltage as low as 1.5V.
`Easy expansion with /CE and /OE options.

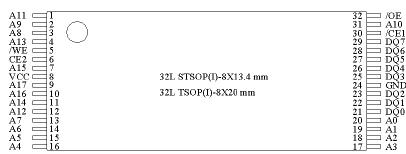

Pinout




Specifications

Symbol	Parameter	Rating	Unit
VTERM	Terminal Voltage with Respect to GND	-0.5 to Vcc+0.5	V
TBIAS	Temperature Under Bias	-40 to +125
TSTG	Storage Temperature	-60 to +150
PT	Power Dissipation	1.0	W
IOUT	DC Output Current	25	mA

Description

The CS18LV20483 is a high performance, high speed, and super low power CMOS Static Random Access Memory organized as 262,144 words by 8 bits and operates from a wide range of 2.7 to 3.6V supply voltage. Advanced CMOS technology and circuit techniques provide both high speed and low power features with a typical CMOS standby current of 0.50uA and maximum access time of 55/70ns in 3.0V operation. Easy memory expansion is provided by an active LOW chip enable inputs (/CE1,CE2) and active LOW output enable (/OE) and three-state output drivers.

The CS18LV20483 has an automatic power down feature, reducing the power consumption significantly when chip is deselected. The CS18LV20483 is available in JEDEC standard 32-pin sTSOP (8x13.4 mm), TSOP (8x20mm), TSOP (II) (400mil) and SOP (450 mil) packages.
