Features:

Emulates Docking Station Environment
   Simulates audio portion of a notebook computer
   "Docks" to the CRD4205-2
Features the CS4205 AC '97 audio codec.
   18-bit Analog to Digital Converters (ADCs)
   20-bit Digital to Analog Converters (DACs)
   Digital mixer
  Integrated digital effects
Four stereo and two mono analog inputs
Digital ZV port input
Five GPIO pins
CNR interface
S/PDIF (IEC-958) digital output
Crystal, oscillator, or PLL operation
Exceeds Microsoft PC-99 and PC-2001 audio performance requirements


Pinout

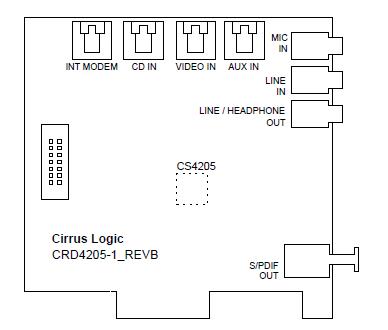

Connection Diagram


Description

The CRD4205-1 reference design features the CS4205 AC '97 audio codec and emulates the audio sub-system in a PC notebook computer. The CRD4205-1 can be used alone or with the CRD4205-2 companion card. The CRD4205-2 companion card simulates the audio subsystem in a PC digital docking station.

This reference design features of CRD4205-1 stereo analog audio inputs for Line, CD, Video, and Aux inputs. In addition, the card has mono analog inputs for Microphone, Modem Audio, and PC Beep. It also has several advanced features including a ZV port digital input and a S/PDIF digital output.

The CRD4205-1 is available by ordering the CMK4205- 3 manufacturing kit. This kit includes a full set of schematics (OrCAD® 7.2 format), PCB job files (PADS® ASCII), PCB Gerber files, and bill of materials. In addition, WDM audio drivers that support Windows 98se, Millennium®, and Windows 2000 are also included.
