Features:

Six Channel Analog Audio Output
Built-in Headphone Amplifier
CS4201 audio codec and CS4334 DACs
20-bit D to A conversion (DAC)
18-bit A to D conversion (ADC)
S/PDIF (IEC-958) optical digital output
Complete suite of Analog I/O connections:
   Line, Mic, CD, Video and Aux Inputs
   Line Front, and Line Rear Outputs
2-layer low cost PC board
Meets Intel ® AC '97 version 2.1 specification
Exceeds Microsoft's® PC 99 and PC-2001  audio performance requirements.


Pinout

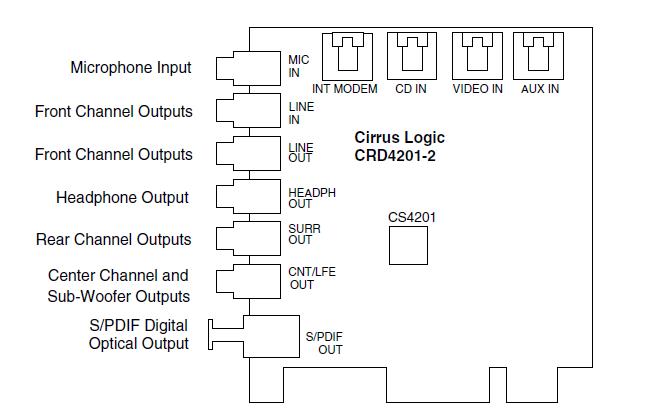

Connection Diagram


Description

The CRD4201-2 Advanced Communications Riser (ACR) reference design features six channel analog audio outputs and a optical S/PDIF digital output. This board uses the CS4201 audio codec which has several advanced features such as a built-in headphone amplifier, up to 30 dB of microphone boost, and serial digital audio outputs.

The CRD4201-2 reference design is available by ordering the CMK4201-2 manufacturing kit. This kit includes a full set of schematic design files (OrCAD® 7.2 and Or- CAD® 9.1 formats), PCB job files (PADS® ASCII), PCB artwork files, and bill of materials. This reference design offers significant cost savings over competing solutions and can be easily modified to meet your specific design goals.
