CR6929A

Features:

` Transition times (10 to 90%) with 45 V (p-p) swing and CL = 10 pF:
rise time (typ.) 2.5 ns
fall time (typ.) 2.1 ns
` Small 11-pin package
` Optimized for low supply voltages up to 90 V
` Design optimized for excellent smearing performance
` Low power consumption: 12 W with 25 MHz square wave
` Gold metallization ensures excellent reliability.


Application

· High-end CRT monitors with pixel frequencies up to 250 MHz.

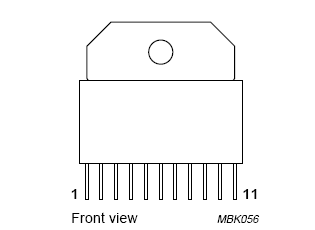

Pinout




Description

The CR6929A is a 3-channel hybrid RGB-amplifier module in an 11-pin SOT451A package. Being an Active Load amplifier, the CR6929A combines a high bandwidth with a relatively low and constant dissipation. It is the pin-compatible 11-pin successor to the 12-pin CR6928A and CR6727A modules.

An optimized design CR6929A, together with innovative application recommendations, ensure excellent smearing performance.

A member of the '29-family' of active loads, the CR6929A is intended for the highest monitor performance. Other '29-family' members are intended for lower static dissipation (CR6929) or lower supply voltages (CR6729A).
