Product Details

Description



Features:

` Typical transition times (10 to 90%) with CL at 8.5 pF:
2.2 ns rise and 2.0 ns fall with 35 V (p-p) swing
2.3 ns rise and 2.1 ns fall with 40 V (p-p) swing
2.5 ns rise and 2.2 ns fall with 50 V (p-p) swing
` Low power consumption
` Minimum small-signal bandwidth 130 MHz
` Very fast slew rate; 15000 V/ms
` Excellent grey-scale linearity
` Unconditional stability
` Gold metallization ensures excellent reliability.


Application

It is designed for application in cathode-ray tube (CRT) drivers in high-resolution colour and monochrome monitors.

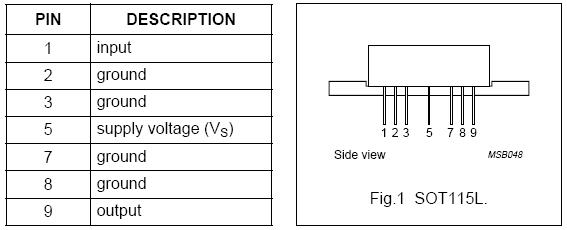

Pinout

Connection Diagram


Description

Hybrid amplifier module mounted in SOT115L package.
