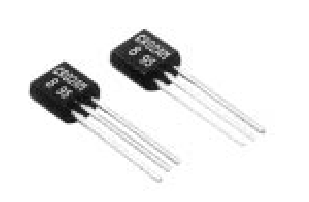

ApplicationSolid state relay, leakage protector, fire alarm, timer, ringcounter, electric blankets, strobe flasher, other general purpose control applicationsPinoutSpecifications Symbol Parameter Voltage class Unit 4 6 8 VRRM Repetitive peak reverse voltage 200 ...
CR02AM: ApplicationSolid state relay, leakage protector, fire alarm, timer, ringcounter, electric blankets, strobe flasher, other general purpose control applicationsPinoutSpecifications Symbol Pa...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Voltage class |
Unit | ||
4 |
6 |
8 | |||
VRRM | Repetitive peak reverse voltage |
200 |
300 |
400 |
V |
VRSM | Non-repetitive peak reverse voltage |
300 |
400 |
500 |
V |
VR (DC) | DC reverse voltage |
160 |
240 |
320 |
V |
VDRM | Repetitive peak off-state voltage ]1 |
200 |
300 |
400 |
V |
VD (DC) | DC off-state voltage ]1 |
160 |
240 |
320 |
V |
Symbol |
Parameter |
Conditions |
Ratings |
Unit | |
IT (RMS) | RMS on-state current |
0.47 |
A | ||
IT (AV) | Average on-state current |
Commercial frequency, sine half wave, 180° conduction, Ta=30°C |
0.3 |
A | |
ITRM | Surge on-state current |
60Hz sine half wave 1 full cycle, peak value, non-repetitive |
10 |
A | |
I2t | I2t for fusing |
Value corresponding to 1 cycle of half wave 60Hz, surge on-state current |
0.4 |
A2s | |
PGM | Peak gate power dissipation |
0.1 |
|||
PG (AV) | Average gate power dissipation |
0.01 |
W | ||
VFGM | Peak gate forward voltage |
6 |
V | ||
VRGM | Peak gate reverse voltage |
6 |
V | ||
IFGM | Peak gate forward current |
0.1 |
A | ||
Tj |
Junction temperature |
40 ~ +125 |
°C | ||
Tstg | Storage temperature |
40 ~ +125 |
°C | ||
- |
Weight |
Typical value |
0.23 |
g |
