CR-F33T

Features:

Low Voltage Operation Possible
Low Supply Current
Small Number of External Components
Internal Power Switch


Application

Battery-Powered Instruments
Hand-Held Instruments
Hand-Held Communication Instruments
Cameras

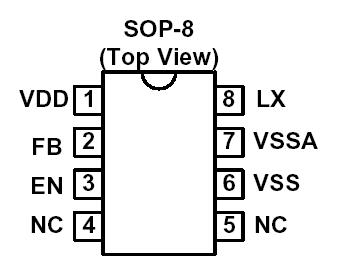

Pinout

Specifications

Supply Voltage-------------------------------------------------------------- - 0.3V to 7V
Input Voltage---------------------------------------------------------------- - 0.3V to VDD+0.3
Operating Temperature Range--------------------------------------------- 0 to 50
Storage Temperature Range----------------------------------------------- - 40 to 150



Description

The CR-F33T is a PFM step-up DC/DC converter IC and has a high efficiency.
These devices consist of a bandgap, a comparator, an oscillator, a driver, and a high current output switch.
The CR-F33T provides a higher fixed voltage from the smaller input voltage.
The CR-F33T is used for single- or dual-cell battery operation.
