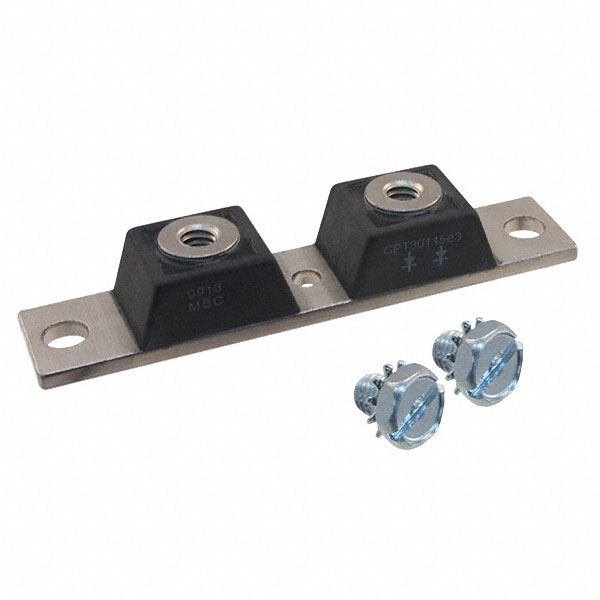

CPT30050

Series: -
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Manufacturer: Microsemi Power Products Group
Reverse Recovery Time (trr): -
Diode Type: Schottky
Diode Configuration: 1 Pair Common Cathode
Packaging: Bulk
Package / Case: MD3CC
Supplier Device Package: Twin Tower
Current - Average Rectified (Io) (per Diode): 150A
Voltage - Forward (Vf) (Max) @ If: 760mV @ 200A
Current - Reverse Leakage @ Vr: 4mA @ 50V
Voltage - DC Reverse (Vr) (Max): 50V


Features:

· Metal of siliconrectifier, majonty carrier conducton
·  Guard ring for transient protection
·  Low power loss high efficiency
·  High surge capacity, High current capability


Specifications

MCC Part Number	Maximum Recurrent Peak Reverse Voltage	Maximum RMS Voltage	Maximum DC Blocking Voltage
CPT30035	35V	24.5V	35V
CPT30040	40V	28 V	30V
CPT30045	45V	31.5V	45V
CPT30050	50V	35 V	50V
CPT30060	60V	42 V	60V
CPT30080	80V	56 V	80V
CPT30090	90V	63 V	90V

Parameters:

Technical/Catalog Information	CPT30050
Vendor	Microsemi
Category	Diodes, Rectifiers
Mounting Type	Screw Mount
Package Name	MD3CC
Structure	1 Pair Common Cathode
Diode Type	Schottky
Repetitive Reverse Voltage (Vrrm)	50 V [Max]
Forward Voltage (Vf)	760.00 mV @ 200.0 A
Reverse Leakage Current	4.00 mA @ 50.0 V
Packaging	Bulk
Capacitance	4.600 nF [Typ]
Surge Current	2000.00 A [Max]
Junction to Case	0.200 °C/W [Nom]
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CPT30050 CPT30050
