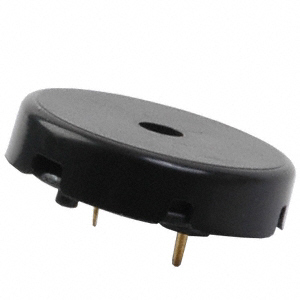

CPE-813

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Voltage Range: 30V (Max)
Frequency: 4kHz
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Input Type: peak-peak Signal
Series: CPE
Voltage - Rated: 10Vp-p
Sound Pressure Level: 84dB @ 10V, 10cm
Current - Supply: 6mA
Size / Dimension: Circular - 22.10mm Dia x 7.10mm H


Specifications

operating voltage: 30 Vp-p

current consumption: 6 mA

sound pressure level: 84 db

electrostatic capacity: 12,000 ± 30%

operating temperature: -30 ~ +85° C

storage temperature: -40 ~ +95° C

dimensions: ?22.1 x 6.6 mm

weight: 2.5 g

material: ABS UL-94 1/16" HB high heat (black)

termination: pin type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CPE-813
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Transducer, External Drive
Sound Pressure Level	84dB
Mounting Type	Through Hole
Capacitance @ Frequency	12000pF @ 1kHz
Frequency	4kHz
Packaging	Bulk
Operating Mode	-
Voltage Range	30Vp-p (max)
Voltage - Rated	10Vp-p
Current Rating	6mA
Size / Dimension	Circular - 22.1mm Dia x 5.3mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CPE 813 CPE813 102 1614 ND 1021614ND 102-1614
