CPE-755

BUZZER PIEZO 12VDC 3.6KHZ PANEL

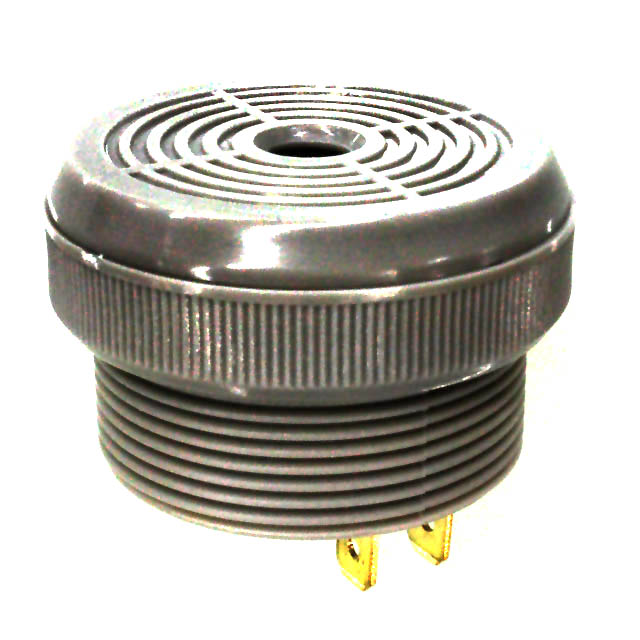

product image

CPE-755 Picture
See larger image
SeekIC No. : 002845521 Detail

CPE-755: BUZZER PIEZO 12VDC 3.6KHZ PANEL

CPE-755 Data Sheet

floor Price/Ceiling Price

US $ 4.86~4.86 / Piece | Get Latest Price
Part Number:
CPE-755
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~500
  • Unit Price
  • $4.86
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CPE Manufacturer: CUI Inc
Driver Circuitry: Indicator, Internally Driven Technology: Piezo
Input Type: DC Voltage - Rated: 12VDC
Voltage Range: 6 ~ 28V Frequency: 3.6kHz
Operating Mode: Continuous, Fast Pulse Sound Pressure Level: 80dB @ 12V, 30cm
Dimensions : 6.5 mm x 9 mm x 1.8 mm Current - Supply: 7mA
Washable: No Mounting Type: Panel Mount
Termination: Quick Connect Tab - 0.189" (4.80mm) Size / Dimension: Circular - 37.80mm Dia x 24.00mm H

Description

Technology: Piezo
Washable: No
Packaging: Bulk
Manufacturer: CUI Inc
Series: CPE
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Current - Supply: 7mA
Frequency: 3.6kHz
Sound Pressure Level: 80dB @ 12V, 30cm
Mounting Type: Panel Mount
Termination: Quick Connect Tab - 0.189" (4.80mm)
Size / Dimension: Circular - 37.80mm Dia x 24.00mm H
Voltage Range: 6 ~ 28V
Operating Mode: Continuous, Fast Pulse


Specifications

  • operating frequency: 3.6 ± 0.5 kHz
  • operating voltage: 6 - 28 Vdc
  • rated voltage: 12 Vdc
  • tone: continuous
  • current consumption: 7 mA
  • sound pressure level: 85 db
  • operating temperature: -30 ~ +85° C
  • storage temperature: -40 ~ +95° C
  • dimensions: ?37.8 x 23.5 mm
  • weight: 18.5 g
  • material: ABS UL-94 1/16" HB (gray)
  • termination: pin type
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationCPE-755
    VendorCUI Inc
    CategoryAudio Products
    TypePiezo Indicator, Internal Drive
    Sound Pressure Level85dB
    Mounting TypePanel Mount
    Capacitance @ Frequency-
    Frequency3.6kHz
    PackagingBulk
    Operating ModeContinuous
    Voltage Range6~28VDC
    Voltage - Rated 12VDC
    Current Rating7mA
    Size / DimensionCircular - 37.8mm Dia x 23.5mm H
    TerminationQuick Connect Tab - 0.189" (4.8mm)
    Capacitance*
    Adjustment Type*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CPE 755
    CPE755
    102 1657 ND
    1021657ND
    102-1657
