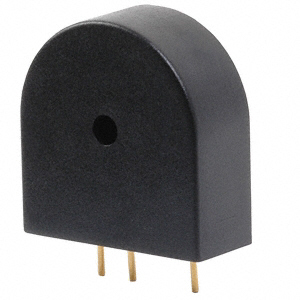

CPE-503

Driver Circuitry: Transducer, Externally Driven
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Series: CPE
Input Type: DC
Voltage - Rated: 12VDC
Current - Supply: 7mA
Technology: Piezo (with Feedback)
Voltage Range: 3 ~ 28V
Frequency: 3.2kHz
Size / Dimension: Rectangular - 24.00mm L x 10.00mm W x 25.00mm H
Sound Pressure Level: 72dB @ 12V, 30cm


Specifications

operating voltage: 3 ~ 28 V dc

operating frequency: 3.2 kHz ± 0.5

current consumption: 7 mA

sound pressure level: 72 db

rated voltage: 12 V dc

tone: continuous

operating temperature: -30 ~ +115° C

storage temperature: -40 ~ +125° C

coil impedance: 25.0 x 24.0 x 10.0 mm

material: PC 10% glass (black)

weight: 3.7 g

termination: pin type

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CPE-503
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Transducer, External Drive
Sound Pressure Level	72dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	3.2kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	3~28VDC
Voltage - Rated	12VDC
Current Rating	7mA
Size / Dimension	Rectangular - 25mm L x 24mm W x 10mm H
Termination	Solder Pins/Posts
Capacitance	*
Adjustment Type	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CPE 503 CPE503 102 1611 ND 1021611ND 102-1611
