CPE-244, US $ 2.15-4.46, CPE-244 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002845530 Detail

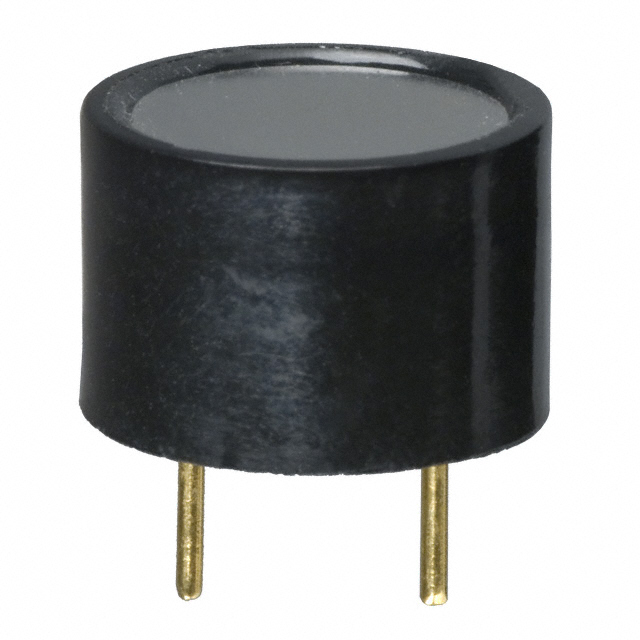

CPE-244: BUZZER PIEZO 14MM 9-16VDC RAD

CPE-244 Data Sheet

US $ 2.15~4.46 / Piece | Get Latest Price

Part Number:: CPE-244
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$4.46
$3.78
$2.92
$2.4
$2.23
$2.15

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CPE-120 evaluate
US $.42 - 1.06 / Piece

BUZZER PIEZO 30V 6.0KHZ PANEL
CPE-121 evaluate
US $.57 - 1.43 / Piece

BUZZER PIEZO 12VDC 4.5KHZ PANEL
CPE-122 evaluate
US $.57 - 1.43 / Piece

BUZZER PIEZO 30V 6.0KHZ PCB

Product Details

Quick Details

Series:	CPE	Manufacturer:	CUI Inc
Sensitivity :	- 80 dBm	Driver Circuitry:	Indicator, Internally Driven
Technology:	Piezo	Input Type:	DC
Voltage - Rated:	12VDC	Voltage Range:	9 ~ 16V
Frequency:	5kHz	Operating Mode:	Continuous
Sound Pressure Level:	80dB @ 12V, 30cm	Current - Supply:	35mA
Washable:	No	Mounting Type:	Through Hole
Termination:	PC Pins	Size / Dimension:	Circular - 14.00mm Dia x 10.50mm H

Description

Technology: Piezo
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Tray
Manufacturer: CUI Inc
Current - Supply: 35mA
Series: CPE
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Voltage Range: 9 ~ 16V
Frequency: 5kHz
Sound Pressure Level: 80dB @ 12V, 30cm
Size / Dimension: Circular - 14.00mm Dia x 10.50mm H

Specifications

resonant frequency: 5.0kHz ±0.5

operating voltage: 9-16 Vdc

current consumption: 35mA Max

sound pressure level: 80dB Min

rated voltage: 12 Vdc

operating temperature: -30 to +85°C

storage temperature: -40 to +95°C

diameter: 14 mm

depth: 9.5 mm

weight: 5.0 grams

termination: PC pins

Parameters:

Technical/Catalog Information	CPE-244
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Indicator, Internal Drive
Sound Pressure Level	80dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	5kHz
Packaging	Tray
Operating Mode	Continuous
Voltage Range	9~16VDC
Voltage - Rated	12VDC
Current Rating	35mA
Size / Dimension	Circular - 14mm Dia x 10mm H
Termination	Solder Pins/Posts
Capacitance	*
Adjustment Type	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CPE 244 CPE244 102 1468 ND 1021468ND 102-1468
