Packaging
:

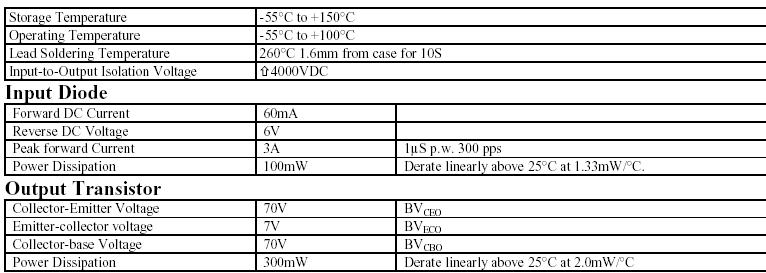

Maximum Collector Emitter Saturation Voltage
: 0.4 V
Maximum Forward Diode Voltage
: 1.5 V
Maximum Operating Temperature
: + 100 C
Minimum Operating Temperature
: - 40 C
Input Type
: DC
Maximum Power Dissipation
: 200 mW
Package / Case
: PDIP-6
Maximum Collector Emitter Voltage
: 70 V
Current Transfer Ratio
: 300 %
Maximum Collector Current
: 100 mA
Isolation Voltage
: 4000 Vrms
Features: 4000V Isolation
8mm (min) Creeping Distance between Emitter & Detector Leads
Designed for VDE and British Standards ApplicationsSpecifications
DescriptionThe CNW11AV1X/2X/3X is an optically coupled isolator. It consists of a Gallium Arsenide infrared emitting diode and a NPN silicon phototransistor mounted in a standard 6-pin plastic dual-in-line package.
Isocom Ltd supplies a multitude of plastic optocouplers for all applications varying from standard transistor optos through to Darlington and Schmitt Trigger devices. CNW11AV1's massive family of optos vary in speed allowing maximum opportunity to engineers worldwide.
CNW11AV1 are performance guaranteed between - 20ºC and +80ºC and have completed rigorous testing. The Company's customers can be assured of our commitment to stringent quality, reliability and inspection standards, as demonstrated by our existing approvals. Other customer specific options can also be offered.
