Product Details

Description



Features:

Ultraminiature, thin type : 2.7 ×3.4 mm (height : 1.5 mm)
Visible light cutoff resin is used
Fast response : tr, tf = 20ms (typ.)
Easy interface for control circuit



Application

Control of motor and other rotary units
Detection of position and edge
Detection of paper, film and cloth
Start, end mark detection of magnetic tape



Pinout

  Connection Diagram

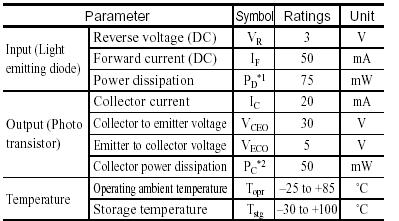

Specifications

(Ta = 25°C)
  Connection Diagram
*1 Input power derating ratio is 1.0 mW/°C at Ta 25°C.
*2 Output power derating ratio is 0.67 mW/°C at Ta 25°C.
