CNA1311K

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Current - Collector (Ic) (Max): 20mA
Mounting Type: Through Hole
Package / Case: PCB Mount
Current - DC Forward (If): 50mA
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Collector Emitter Breakdown (Max): 35V
Sensing Distance: 0.039" (1mm)
Response Time: 50µs, 50µs


Features:

Ultraminiature : 2.6 ×4.0 mm (height : 3.3 mm)
Highly precise position detection : 0.05 mm
Gap width : 1.0 mm


Pinout

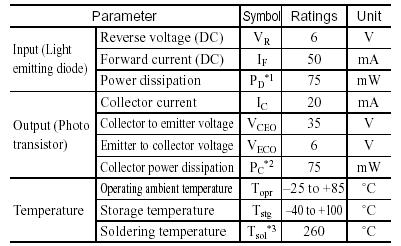

Specifications

(Ta = 25°C)

*1 Input power derating ratio is 1.0mW/°C at Ta ³ 25°C.
*2 Output power derating ratio is 1.0mW/°C at Ta ³ 25°C.
*3 Soldering time is within 5 seconds.


Parameters:

Technical/Catalog Information	CNA1311K
Vendor	Panasonic - SSG
Category	Sensors, Transducers
Sensing Distance	0.039" (1mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	50s , 50s <!--50us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CNA1311K CNA1311K
