CNA1301H

PHOTO INTERRUPTER 1.4MM IO4-14

product image

CNA1301H Picture
See larger image
SeekIC No. : 004137803 Detail

CNA1301H: PHOTO INTERRUPTER 1.4MM IO4-14

CNA1301H Data Sheet

floor Price/Ceiling Price

US $ .19~.47 / Piece | Get Latest Price
Part Number:
CNA1301H
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $.47
  • $.38
  • $.33
  • $.29
  • $.25
  • $.2
  • $.19
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Panasonic Electronic Components - Semiconductor Products
Sensing Distance: 0.055" (1.4mm) Sensing Method: Transmissive
Output Configuration: Phototransistor Package / Case : HVQFN EP
Current - DC Forward (If): 50mA Current - Collector (Ic) (Max): 20mA
Voltage - Collector Emitter Breakdown (Max): 35V Response Time: 35µs, 35µs
Mounting Type: Surface Mount Package / Case: 4-SMD

Description

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Current - Collector (Ic) (Max): 20mA
Mounting Type: Surface Mount
Current - DC Forward (If): 50mA
Package / Case: 4-SMD
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Sensing Distance: 0.055" (1.4mm)
Voltage - Collector Emitter Breakdown (Max): 35V
Response Time: 35µs, 35µs


Features:

Ultraminiature : 3.8×4.2 mm(height : 4.2 mm)
Highly precise position detection : 0.15 mm
Gap width : 1.4 mm
Support for thin equipment (permits direct mounting on printed circuit board


Pinout

Connection Diagram

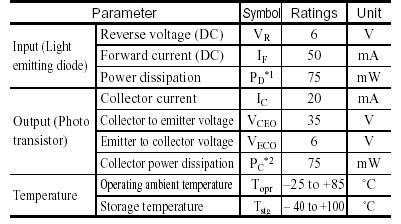

Specifications

(Ta = 25°C)
Connection Diagram
*1 Input power derating ratio is 1.0 mW/°C at Ta ³ 25°C.
*2 Output power derating ratio is 1.0 mW/°C at Ta ³ 25°C.
