Product Details

Description



Features:

· Supports the HomePNA 1.0 specification for a home phoneline network
· 1 Mbps data rate
· Integrated Analog Front End
· Configurable transmit power level; high- and low-power
· Configurable transmit data rate; low- and high-speed
· 32-pin TQFP package

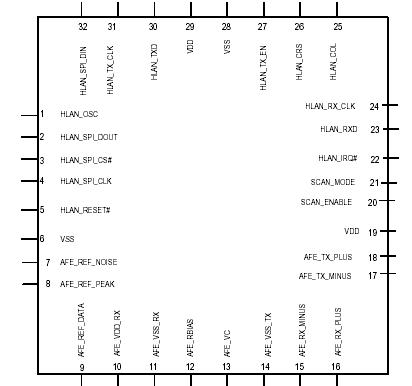

Pinout

  Connection Diagram


Specifications

  Connection Diagram


Description

The typical application shown in Figure 1 displays a multifunction PCI Network Interface Card (NIC). The NIC incorporates the RS7112 Home Networking Controller, the CN7221 Home Networking PHY with Integrated AFE, and a
V.90 56 Kbps host-controlled modem. The RS7112's 7- wire serial interface (7WS) is used to support the CN7221.
